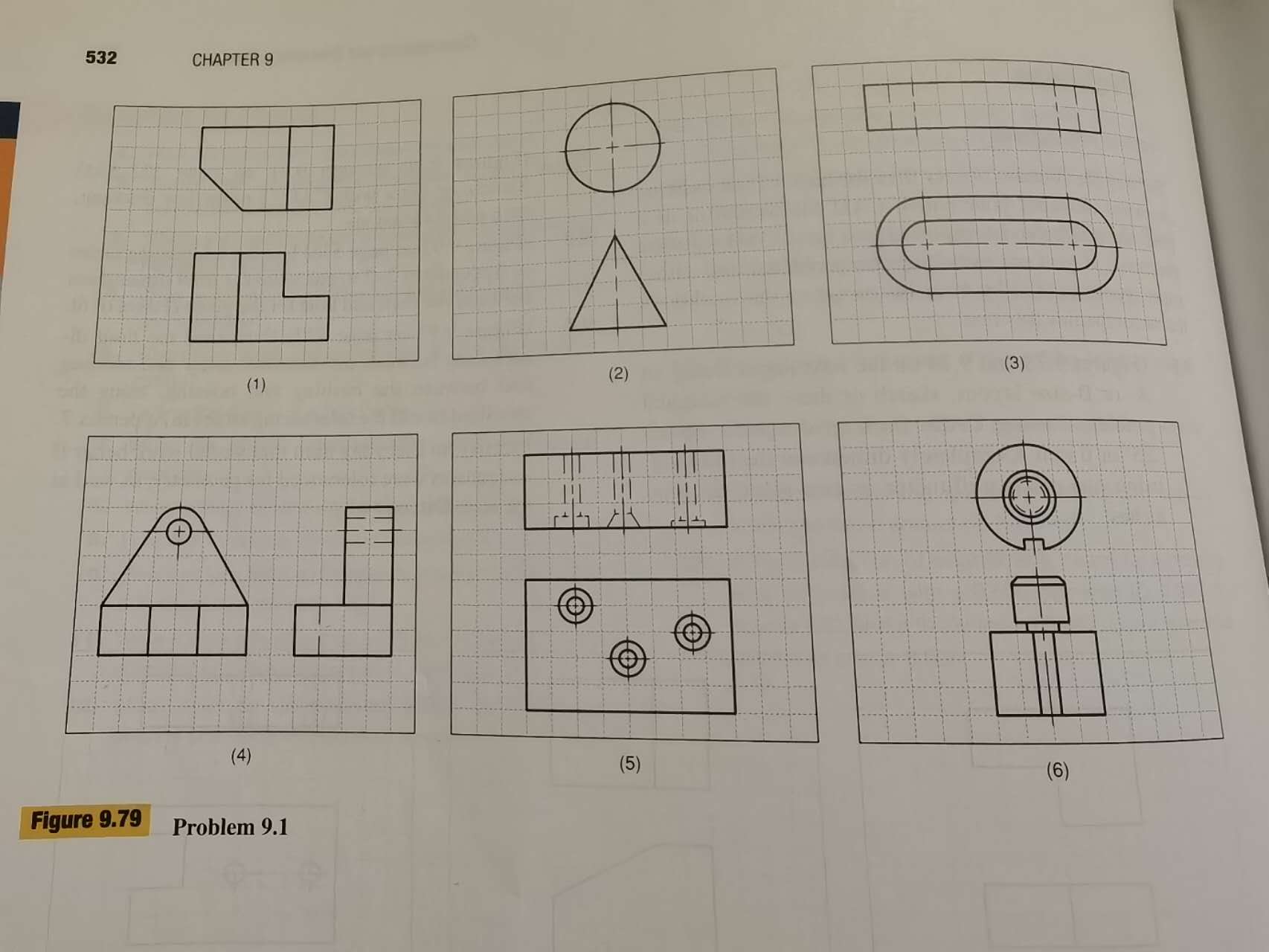

HOMEWORK #7 DIMENSIONING PRACTICES Draw with instruments, a multiview drawing of the part shown in Figure 9.79(4) of textbook on a A_Sheet template. Each grid square equals .25" or 6 mm. Completely dimension the drawing, using one-place millimeter or two-place decimal inches. II. Draw with instruments, a multiview drawing of the Standard Bracket shown in Figure 9.88 of your textbook on a A_Sheet template, then add dimensions. 532 (4) CHAPTER 9 (3) (2) (1) B (5) (6) Figure 9.79 Problem 9.1 POUNC R76 M 45 X 1.5- 22 32 -90- 128 321 64 4 108 38 42 36 36 124 Figure 9.88 Standard bracket 2X M 33 LIO 52 T12 L 38 METRIC
