Question: Homework Problem H 2 2 . A Given: Consider the truss and loading shown below.. Find: Using the method of sections, determine the load carried

Homework Problem H22.A

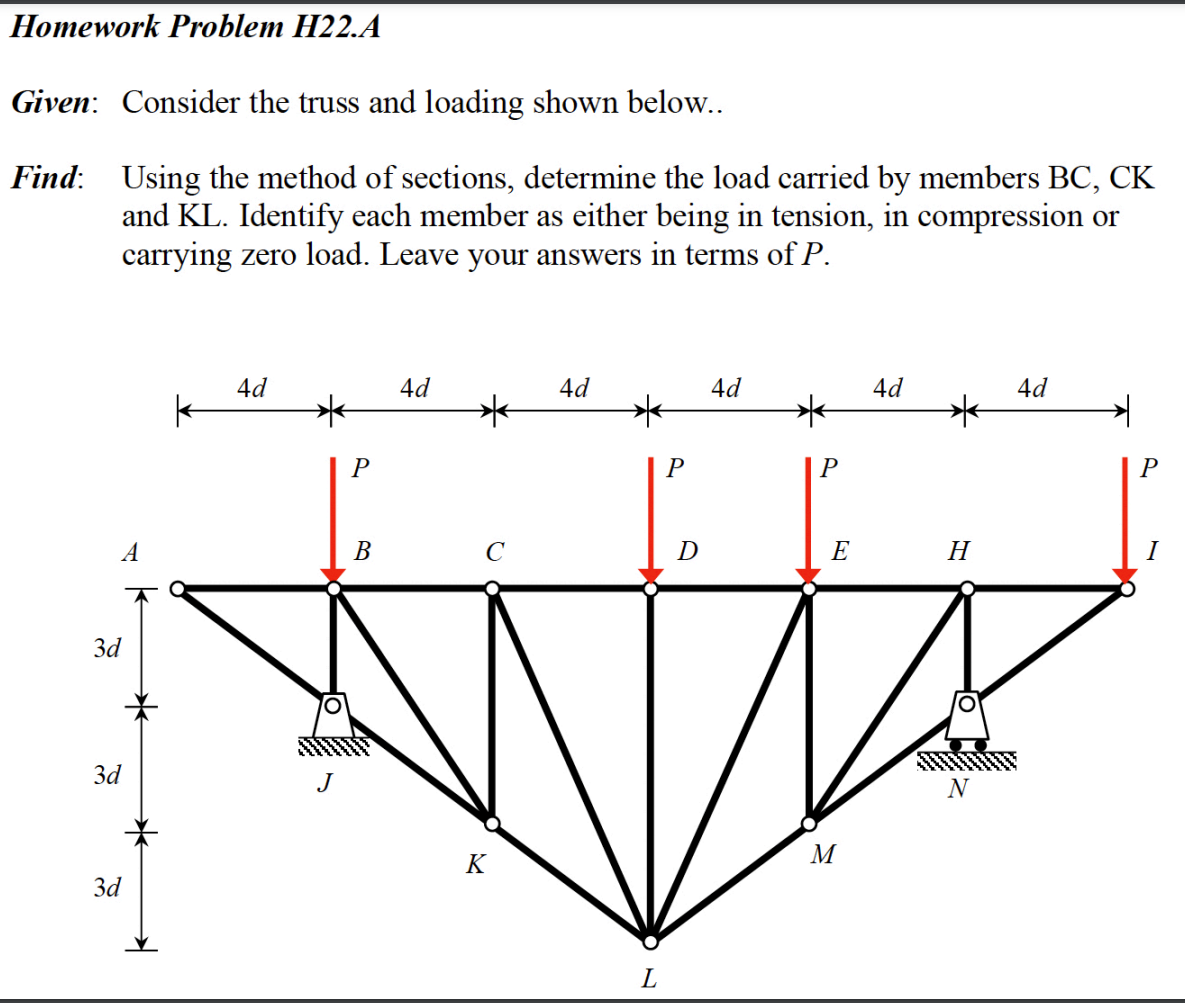

Given: Consider the truss and loading shown below..
Find: Using the method of sections, determine the load carried by members BC, CK
and KL. Identify each member as either being in tension, in compression or
carrying zero load. Leave your answers in terms of P.
