Question: Homework ( Superposition ) Answer should be in fraction format with El in denominator. Ex . 1 2 / 3 EI . Box your final

Homework

(

Superposition

)

Answer should be in fraction format with El in denominator. Ex

. 12 / 3

.

Box your final answer.

WRITE LEGIBLY.

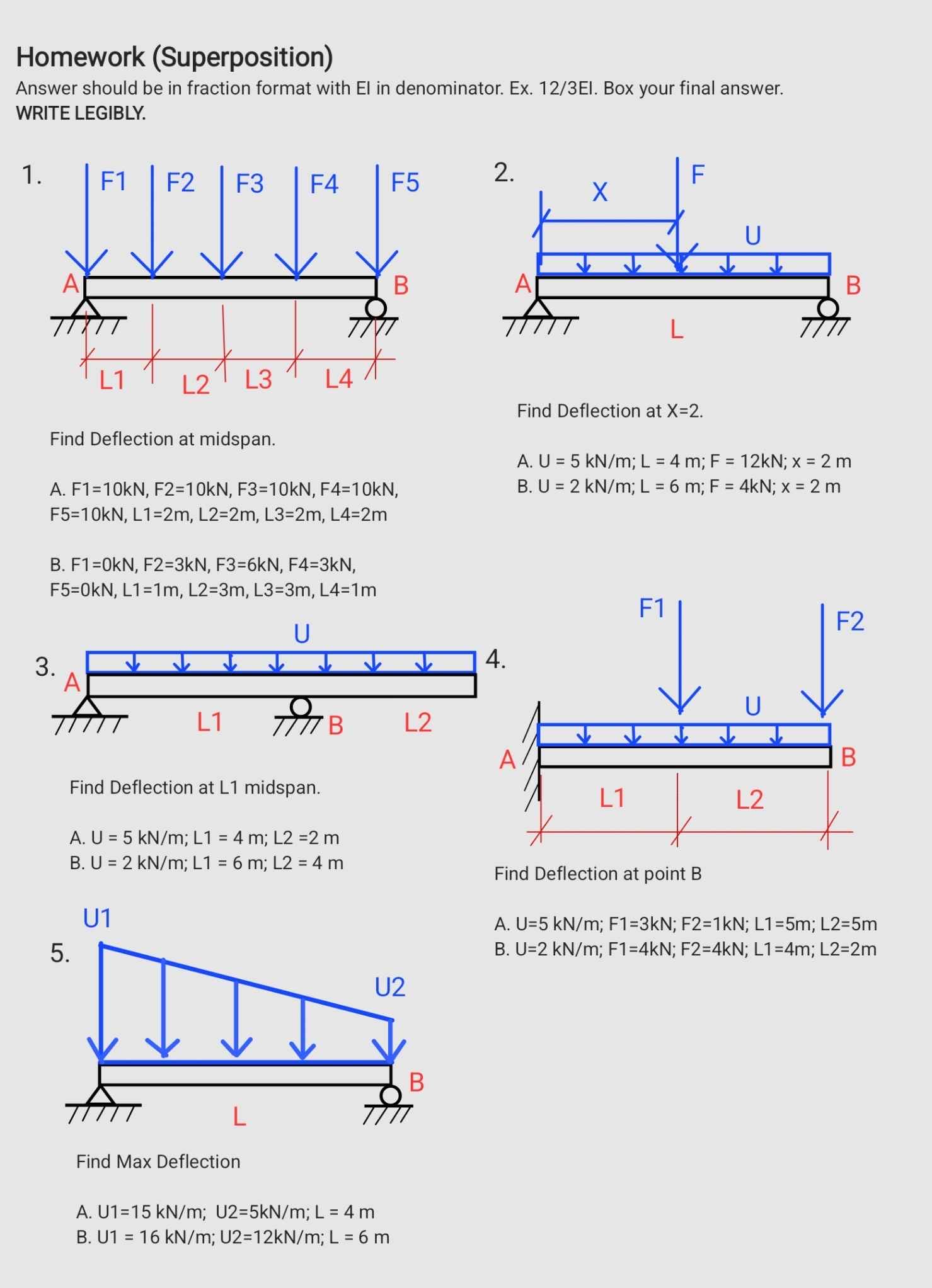

Find Deflection at midspan.

. F 1 = 10 k N, F 2 = 10 k N, F 3 = 10 k N, F 4 = 10 k N,

F 5 = 10 k N, L 1 = 2 m, L 2 = 2 m, L 3 = 2 m, L 4 = 2 m

. F 1 = 0 k N, F 2 = 3 k N, F 3 = 6 k N, F 4 = 3 k N,

F 5 = 0 k N, L 1 = 1 m, L 2 = 3 m, L 3 = 3 m, L 4 = 1 m

Find Deflection at

x = 2 .

. U = 5 k \frac{N}{m}

;

L = 4 m

;

F = 12 k N

;

x = 2 m

. U = 2 k \frac{N}{m}

;

L = 6 m

;

F = 4 k N

;

x = 2 m

Find Deflection at L

1

midspan.

. U = 5 k \frac{N}{m}

;

L 1 = 4 m

;

L 2 = 2 m

. U = 2 k \frac{N}{m}

;

L 1 = 6 m

;

L 2 = 4 m

. U = 5 k \frac{N}{m}

;

F 1 = 3 k N

;

F 2 = 1 k N

;

L 1 = 5 m

;

L 2 = 5 m

. U = 2 k \frac{N}{m}

;

F 1 = 4 k N

;

F 2 = 4 k N

;

L 1 = 4 m

;

L 2 = 2 m

Find Max Deflection

. U 1 = 15 k \frac{N}{m}

;

U 2 = 5 k \frac{N}{m}

;

L = 4 m

. U 1 = 16 k \frac{N}{m}

;

U 2 = 12 k \frac{N}{m}

;

L = 6 m

Homework ( Superposition ) Answer should be in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
