Question: How do i solve this Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to

How do i solve this

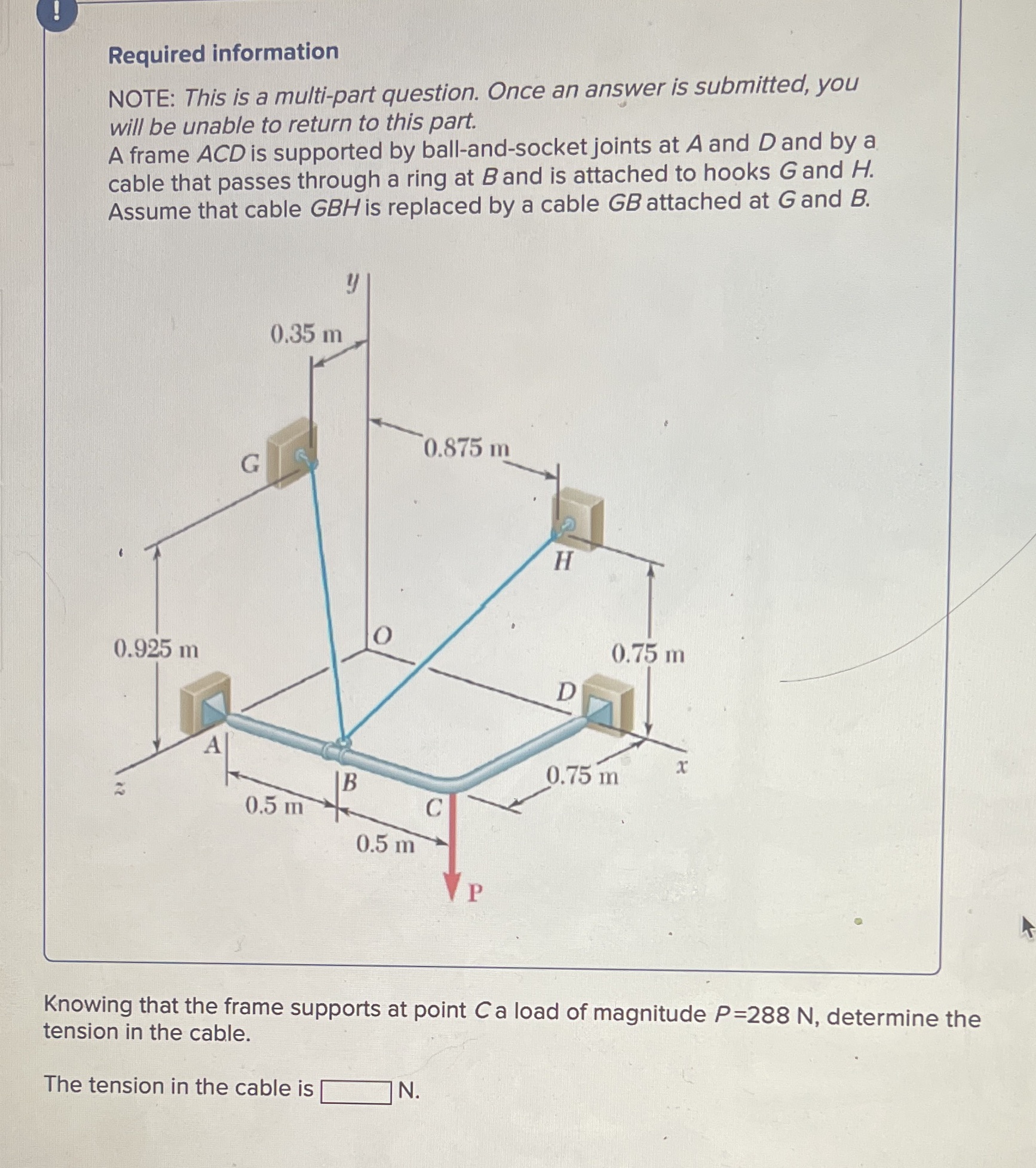

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A frame ACD is supported by ball-and-socket joints at A and D and by a cable that passes through a ring at Band is attached to hooks G and H. Assume that cable GBH is replaced by a cable GB attached at G and B. 0.35 m 0.875 m G 2 H 0.925 m 0.75 m D A B 0.75 m X 0.5 m C 0.5 m P Knowing that the frame supports at point C a load of magnitude P=288 N, determine the tension in the cable. The tension in the cable is N
