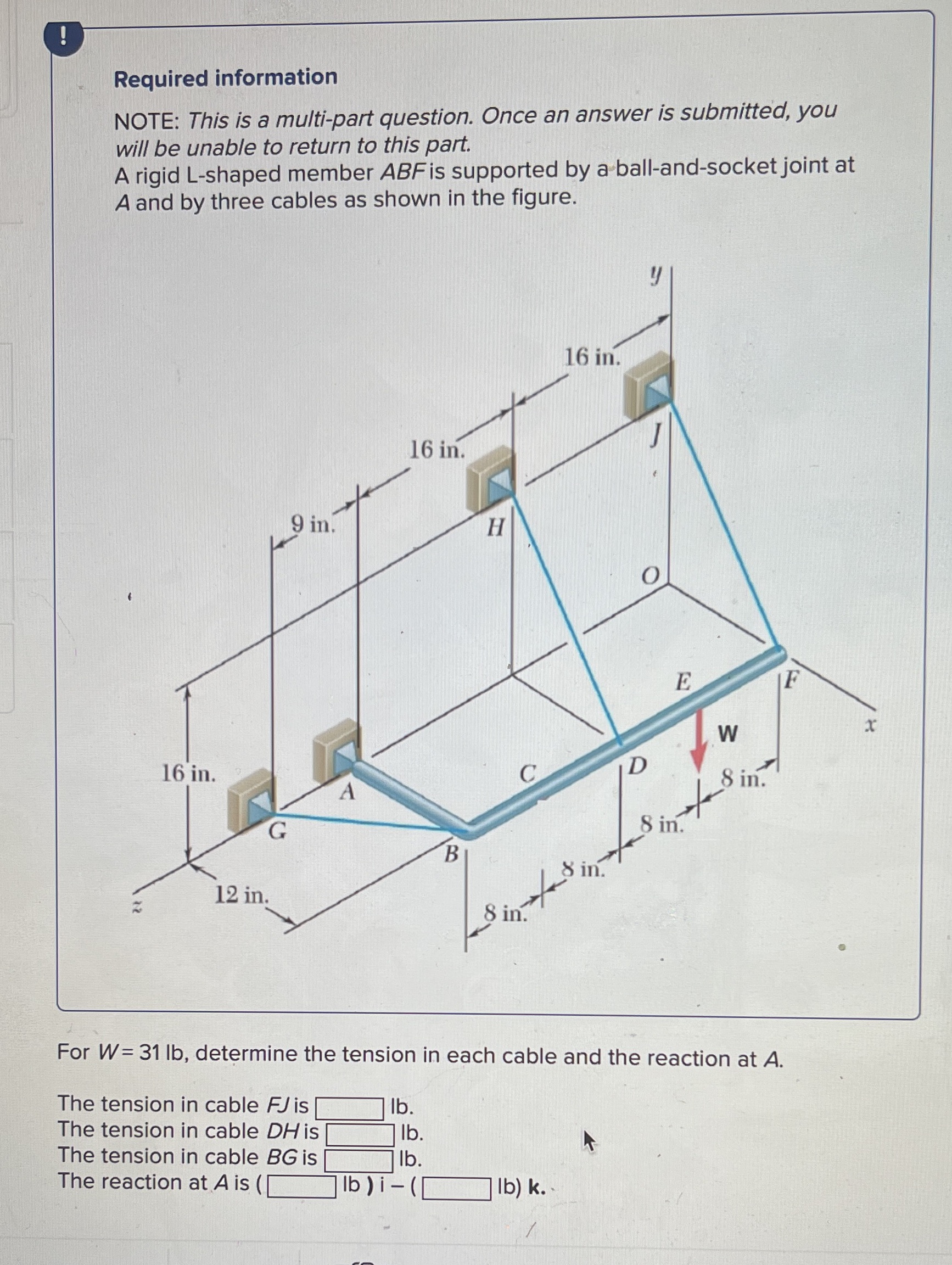

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A rigid L-shaped member ABFis supported by a ball-and-socket joint at A and by three cables as shown in the figure. 16 in. 16 in. 9 in. H O W 16 in. D s in. G 8 in B in. 12 in. 8 in. For W= 31 lb, determine the tension in each cable and the reaction at A. The tension in cable FJ is [ Ib. The tension in cable DH is [ 7lb. The tension in cable BG is lb. The reaction at A is ( 1b ) i - (C Ib) k
