Question: How to solve Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Knowing that the average

How to solve

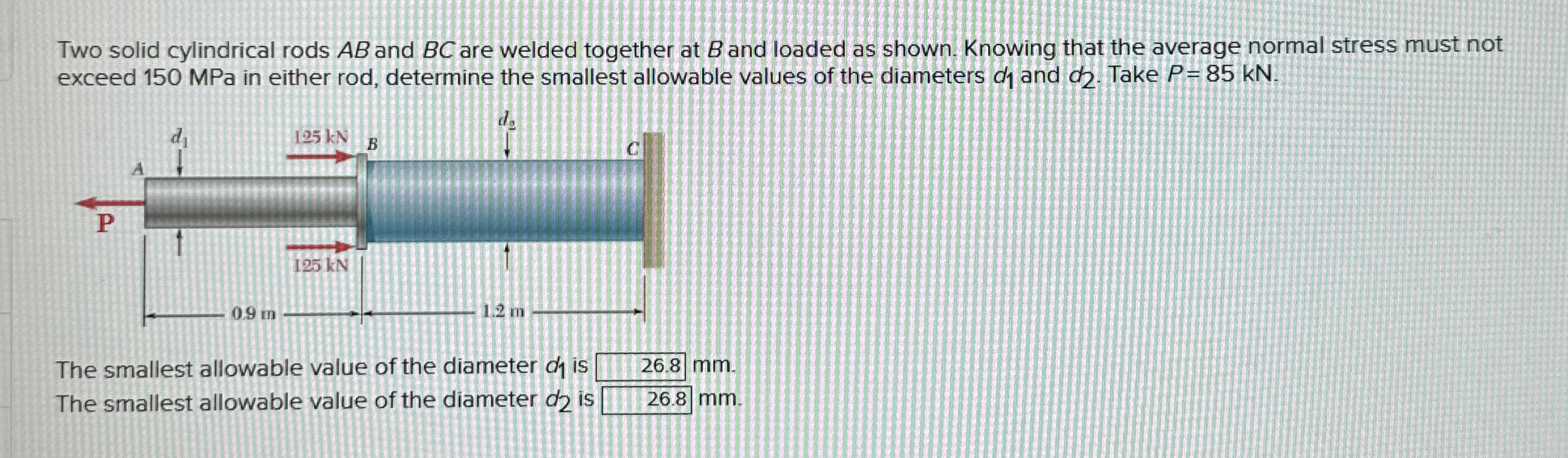

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Knowing that the average normal stress must not exceed 150 MPa in either rod, determine the smallest allowable values of the diameters d1 and d2. Take P=85kN.
The smallest allowable value of the diameter d1 is 26.8 mm .
The smallest allowable value of the diameter d2 is mm
How to solve Two solid cylindrical rods A B and B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
