https://phet.colorado.edu/sims/html/collision-lab/latest/collision-lab_all.html

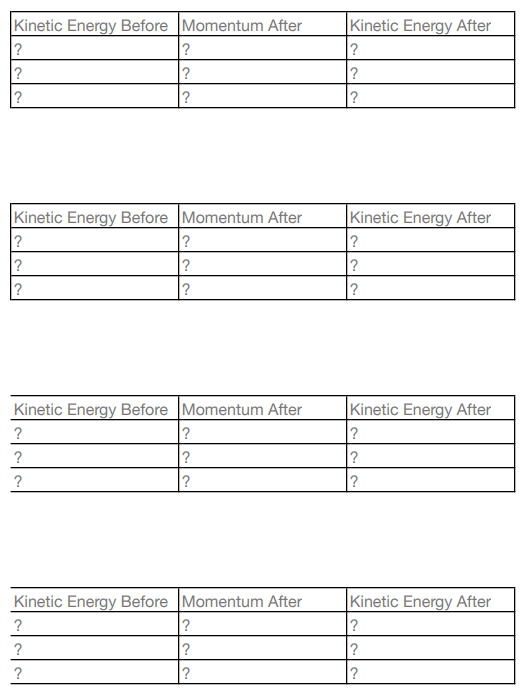

\fGROUP 2 Collision 2 Group . 2 questions We will now examine a different collision. Change the starting conditions to matching the image below. More Data Mass (kg) Position (m) Velocity (m/s) Momentum (kg m/s) X Vx Px 0.25 -1.00 1.00 0.25 2 2.00 1.00 0.00 0.00 Based on the initial conditions, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "before" columns of data sheet collision 2 . Click "Play" to run the simulation and pause it after they collide. Based on the new values of velocity of each ball, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "After" columns of the data sheet collision 2. QUESTION 2.1 Q3 Choose one . 11 points For the elastic collision you just preformed (Collision 2): Was momentum conserved? Yes O NoQUESTION 2.2 Q4 Choose one . 11 points For the elastic collision you preformed (collision 2): Was kinetic energy conserved? O Yes No GROUP 3 Collision 3 Group . 2 questions We will now examine a 3rd collision. Change the Elasticity slider in the box at the top right of the screen/sim to 09% (slid all the way to the left). Change the starting conditions to matching the image below. More Data Mass (kg) Position (m) Velocity (m/s) Momentum (kg m/s) X Vx Px 2.00 -1.00 1.00 2.00 2 2.00 1.00 0.00 0.00 Based on the initial conditions, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "before" columns of the data sheet collision 3. Click "Play" to run the simulation and pause it after they collide. Based on the new values of velocity of each ball, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "After" columns of the data sheet collision 3.\fGROUP 4 Collision 4 Group . 2 questions We will now examine a 4th collision. Make sure the blue slider on the right side of the simulation is all the way to the left. It should be set to 096 elastic or inelastic. Change the starting conditions to matching the image below. More Data Mass (kg) Position (m) Velocity (m/s) Momentum (kg m/s) X Px 1 2.00 -1.00 1.00 2.00 (2 2.00 1.00 -1.00 -2.00 Based on the initial conditions, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "before" columns of the data sheet collision 4. Click "Play" to run the simulation and pause it after they collide. Based on the new values of velocity of each ball, calculate the momentum and kinetic energy of both balls, along with their total, and add that information to the "After" columns of the data sheet collision 4. QUESTION 4.1 Q7 Choose one . 11 points For the inelastic collision you just preformed (Collision 4): Was momentum conserved? Yes O NoQUESTION 4.2 Q8 Choose one . 11 points For the inelastic collision you just preformed (Collision 4): Was kinetic energy conserved? Yes O No GROUP 5 Collision 5 Group . 1 question Click the explore 20 tab. Velocity Momentum 0.5 m Change in Momentum O Center of Mass O Kinetic Energy Values Elasticity 0% Constant Size Normal + Momenta Diagram More Data Mass (kg) Position [m) Velocity (mis) Momentum (kg mia) Px 2.00 -1.00 1.00 2.00 2 2.00 1.00 -1.00 -2.00 Collision Lab Intro Exdone 1 Inclaslic PhET : Now the balls are free to move on both the x-axis and y-axis. Play around with different initial values that cause collisions at different angles and make some notes on scratch paper or on the data sheet. (if the balls hit the walls you results will be off)
