Question: i don't know how to do this 3- (50 points) Write the truth table for the following circuits: Xo XNORDO ANDS X NANDY ORS X

i don't know how to do this i don't know how to do this 3- (50 points) Write the

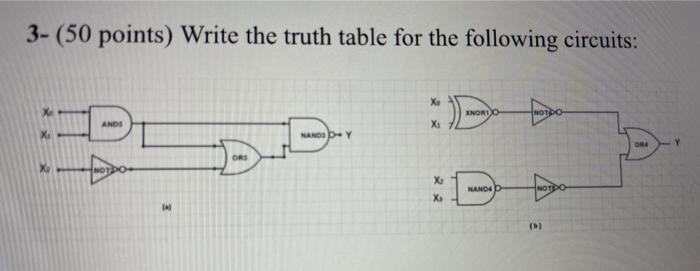

3- (50 points) Write the truth table for the following circuits: Xo XNORDO ANDS X NANDY ORS X X NANDA NOTPO ()

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

What is the truth of this problem? 3- (50 points) Write the truth table for the following circuits: Xo Xo KNORDO NOT XI X1 NANDI Y X Xa NANDA NOT X: tal

Q:

help with this question 3- (50 points) Write the truth table for the following circuits: Xo Xo ). XNOR10 ANDS NOTADO X1 X1 NANDI - Y OR3 OR4 Y X2 NOTO. X2 NAND4 b NOTO X3 (b)

Q:

help with this question in digital logic 3- (50 points) Write the truth table for the following circuits: Xo 3) XNOR1YO ANDS X1 X NAND b.Y OR4 OR3 X2 NAND4 10) (b)
