Question: I got the answer for B and C . Plas show step by step solution and answer only for to Determine the normal force, shear

I got the answer for B and C

.

Plas show step by step solution and answer only for to Determine the normal force, shear force, and moment at points A in the beam. Determine the normal force, shear force, and moment at points

A, B

and

C

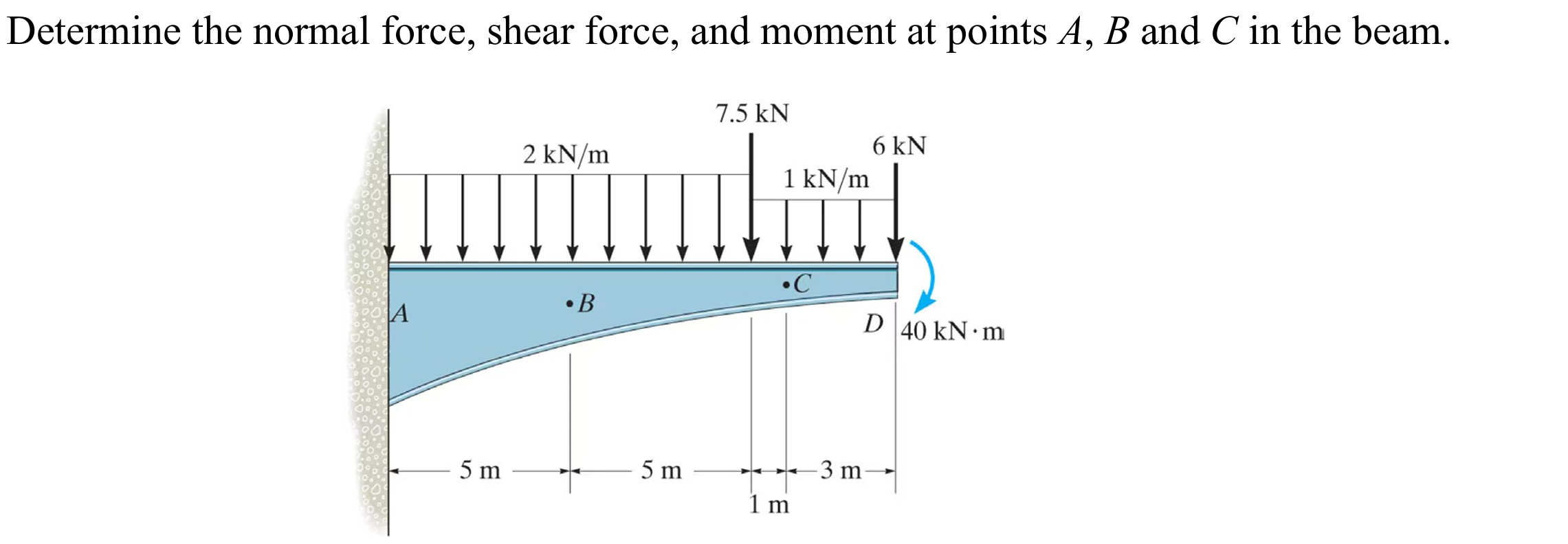

in the beam.

I got the answer for B and C . Plas show step by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
