Question: I need full solution please.. The following table shows the truth table for the 7-segment display driver, and the figure shows the block diagram of

 I need full solution please.. The following table shows the truth

I need full solution please..

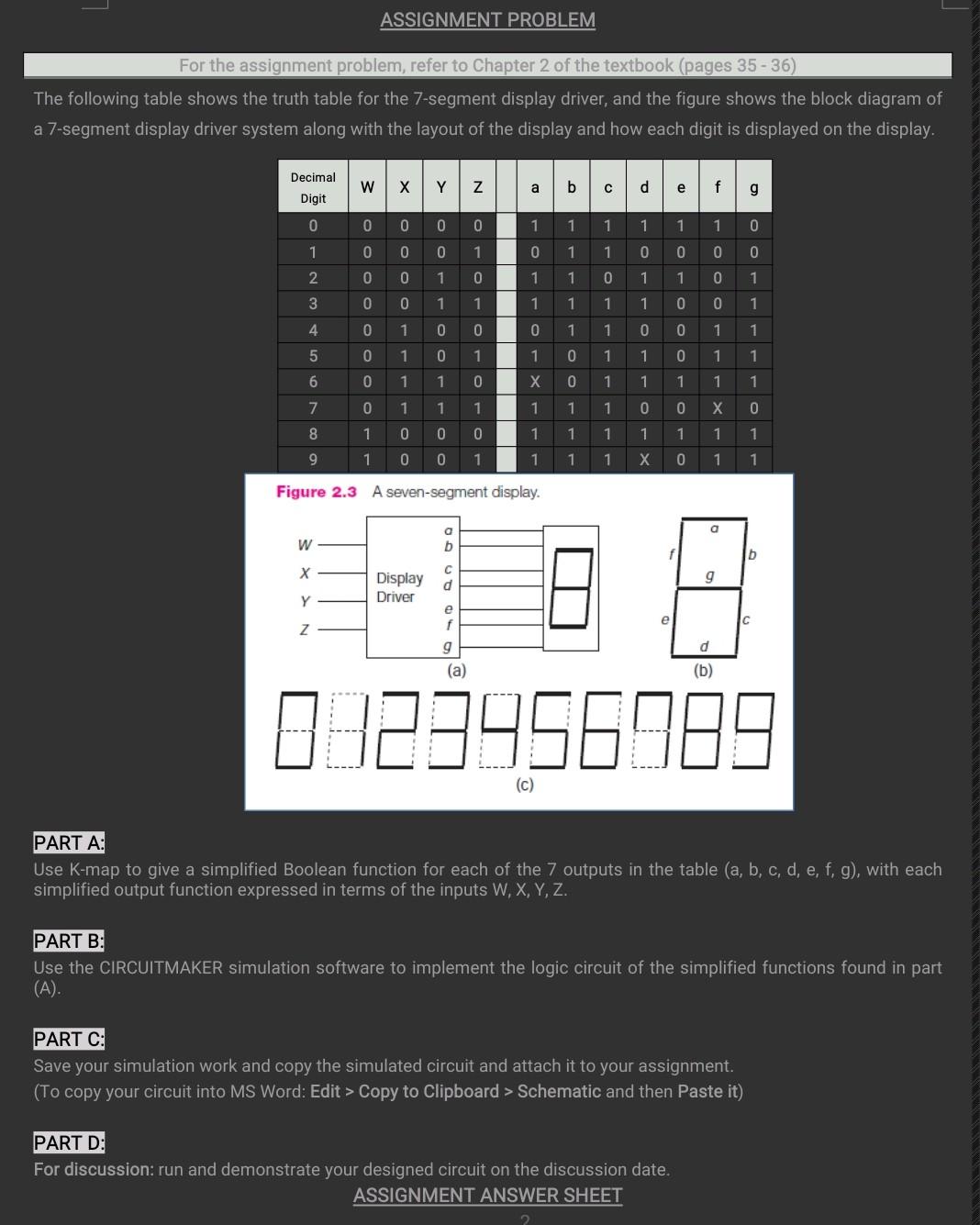

The following table shows the truth table for the 7-segment display driver, and the figure shows the block diagram of a 7-segment display driver system along with the layout of the display and how each digit is displayed on the display. Figure 2.3 A seven-segment display. PART A: Use K-map to give a simplified Boolean function for each of the 7 outputs in the table (a,b,c,d,e,f,g), with each simplified output function expressed in terms of the inputs W,X,Y,Z. PART B: Use the CIRCUITMAKER simulation software to implement the logic circuit of the simplified functions found in part (A). PART C: Save your simulation work and copy the simulated circuit and attach it to your assignment. (To copy your circuit into MS Word: Edit > Copy to Clipboard > Schematic and then Paste it) PART D: For discussion: run and demonstrate your designed circuit on the discussion date. ASSIGNMENT ANSWER SHEET
