Question: I need help and below is what I am given, I need help in doing the Matlab code. Beam Material: Structural ASTM - A 3

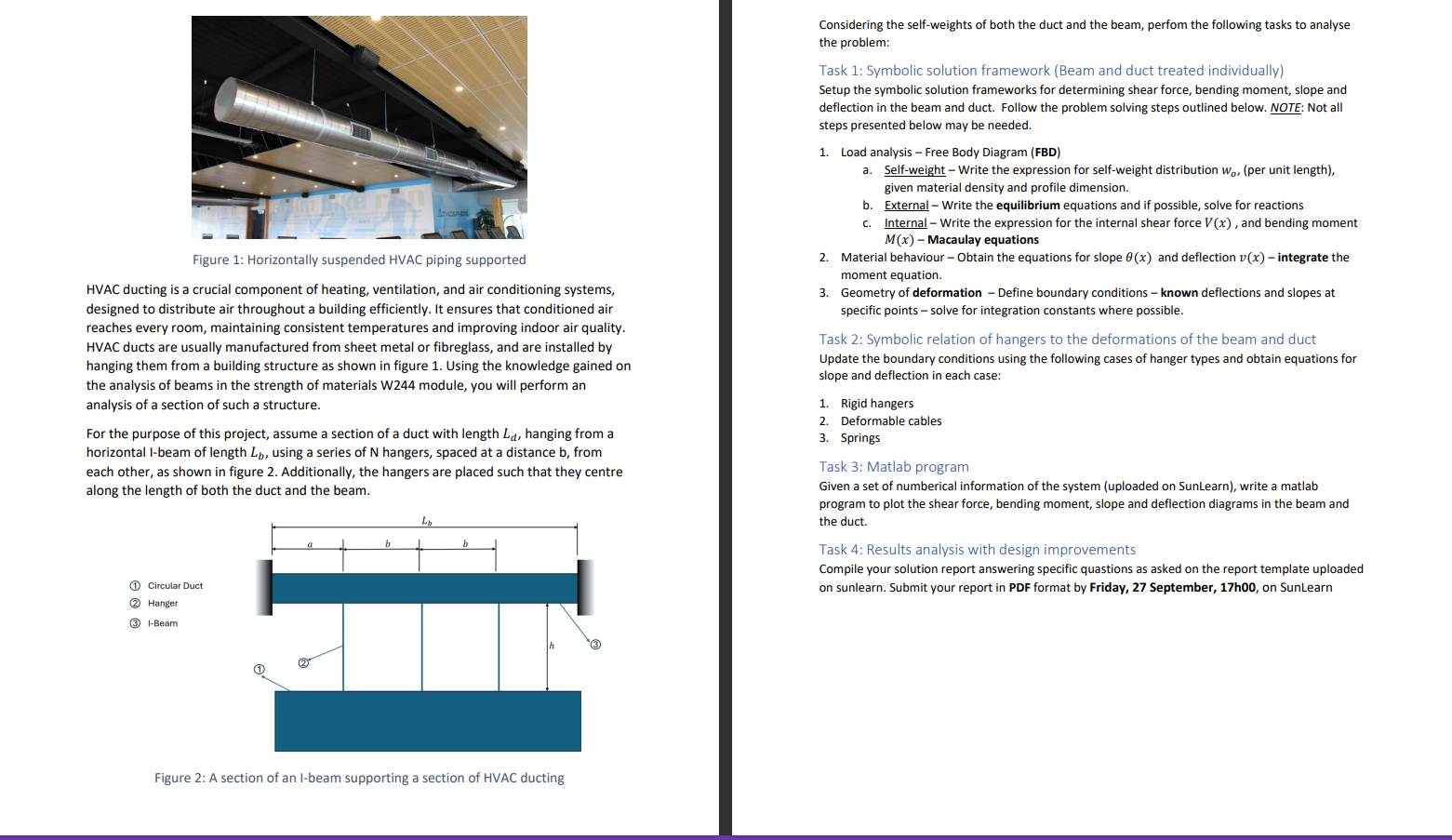

I need help and below is what I am given, I need help in doing the Matlab code.
Beam
Material: Structural ASTM-A36 Steel (E =200 GPa)
Length: Lb =10 m
profile is W310x310x342
Duct
Material: Aluminum (E =69 Gpa, and density 2700 kg/m3)
Length: La =8m
Profile: Hallow tube of 50 mm thickness, and outer diameter given table below.
Hangers
Material: Cable - stainless AISI 302(E =180 GPa) and diameter 50 mm
Spring (K =200 kN/m)
Length: h =10 m
Number of hangers: 6
Spacing: b =1 m
Outer diameter=250 mm
I need help and below is what I am given, I need
