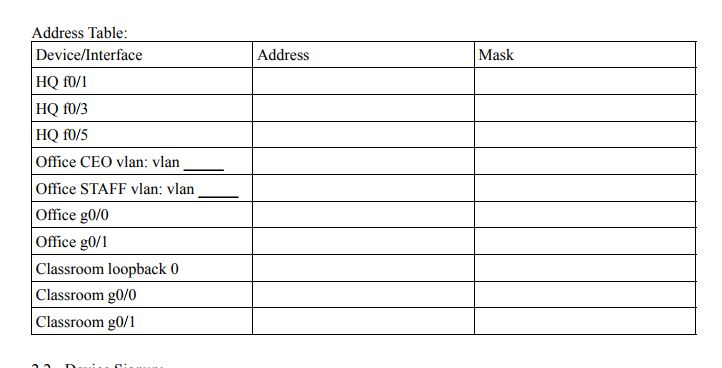

I need help with this assigning the correct ip address with the interfaces in the chart down below, . Please see below.I need help assigning all the IP address to the interfaces in the chart. Please help.

. Addressing: Configure a VLSM addressing scheme using network 202.2.100.0/24

a. Subnets should be allocated biggest to smallest.

b. Allocate consecutive address blocks so that all of the unallocated address space is at the end of your assigned network.

c. Subnets should be as small as possible and still support the required number of hosts. The CEO vlan must support 3 hosts The Staff vlan must support 8 hosts The Classroom LAN must support 100 hosts Links between devices must support 2 hosts.

d. Assign the last usable address in the subnet to the gateway interface for the CEO, Staff, and Classroom subnets. e. HQ f0/1 should be assigned IP address 195.5.5.100/24.

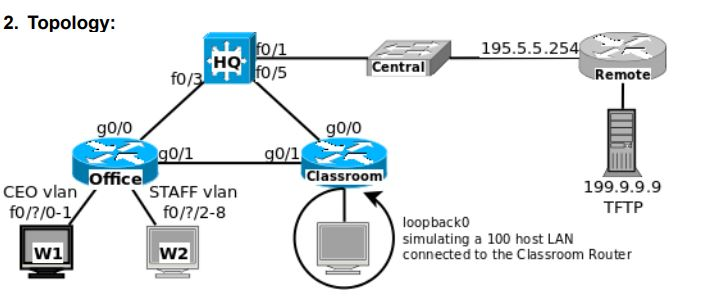

2. Topology: 195.5.5.254 fo/5 Central Remote fo go/o go/0 0 Office Classroom CEO vlan fo//o-1 199.9.9.9 TFTP STAFF vlan fo//2-8 loopbacko simulating a 100 host LAN connected to the Classroom Router W1 W2 2. Topology: 195.5.5.254 fo/5 Central Remote fo go/o go/0 0 Office Classroom CEO vlan fo//o-1 199.9.9.9 TFTP STAFF vlan fo//2-8 loopbacko simulating a 100 host LAN connected to the Classroom Router W1 W2
