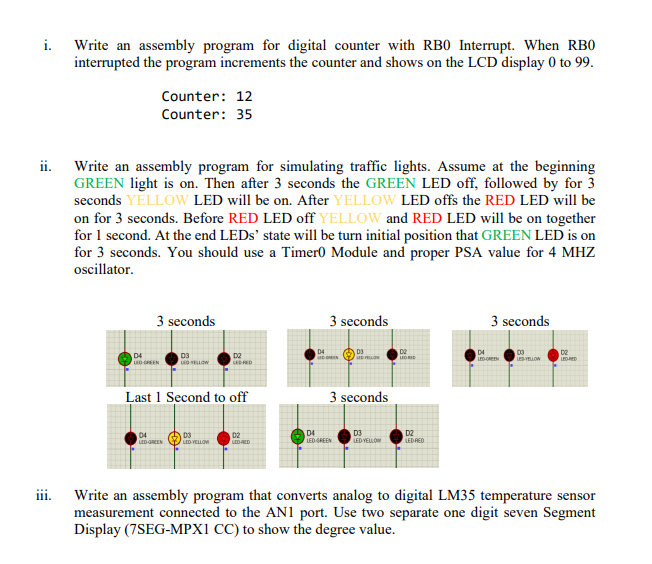

i$.$ Write an assembly program for digital counter with RB$0$ Interrupt. When RB$0$

interrupted the program increments the counter and shows on the LCD display $0$ to $99.$

Counter: $12$

Counter: $35$

ii$.$ Write an assembly program for simulating traffic lights. Assume at the beginning

GREEN light is on$.$ Then after $3$ seconds the GREEN LED off, followed by for $3$

seconds YELLOW LED will be on$.$ After YELLOW LED offs the RED LED will be

on for $3$ seconds. Before RED LED off YELLOW and RED LED will be on together

for $1$ second. At the end LEDs' state will be turn initial position that GREEN LED is on

for $3$ seconds. You should use a Timer$0$ Module and proper PSA value for $4MHZ$

oscillator.

iii. Write an assembly program that converts analog to digital LM$35$ temperature sensor

measurement connected to the AN$1$ port. Use two separate one digit seven Segment

Display $(7$SEG$-$MPX$1$ CC$)$ to show the degree value.

I need proteus project files or screenshot of simulations for each question and $.$asm files too.
