If possible, use arena software

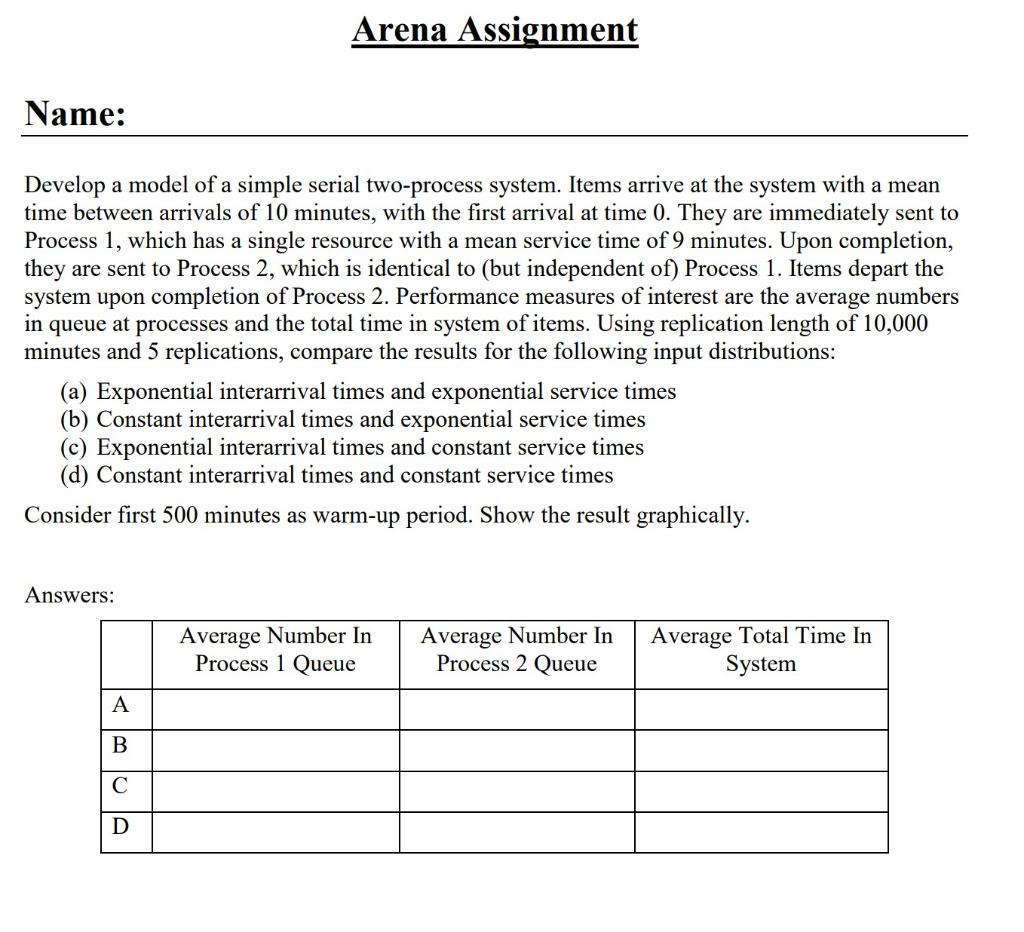

Name: Develop a model of a simple serial two-process system. Items arrive at the system with a mean time between arrivals of 10 minutes, with the first arrival at time 0. They are immediately sent to Process 1, which has a single resource with a mean service time of 9 minutes. Upon completion, they are sent to Process 2, which is identical to (but independent of) Process 1. Items depart the system upon completion of Process 2. Performance measures of interest are the average numbers in queue at processes and the total time in system of items. Using replication length of 10,000 minutes and 5 replications, compare the results for the following input distributions: Arena Assignment (a) Exponential interarrival times and exponential service times (b) Constant interarrival times and exponential service times (c) Exponential interarrival times and constant service times (d) Constant interarrival times and constant service times Consider first 500 minutes as warm-up period. Show the result graphically. Answers: A B C D Average Number In Process 1 Queue Average Number In Process 2 Queue Average Total Time In System
