Question: If the static friction coefficient on the threads is 0 . 4 , determine the force that must be applied at ( A

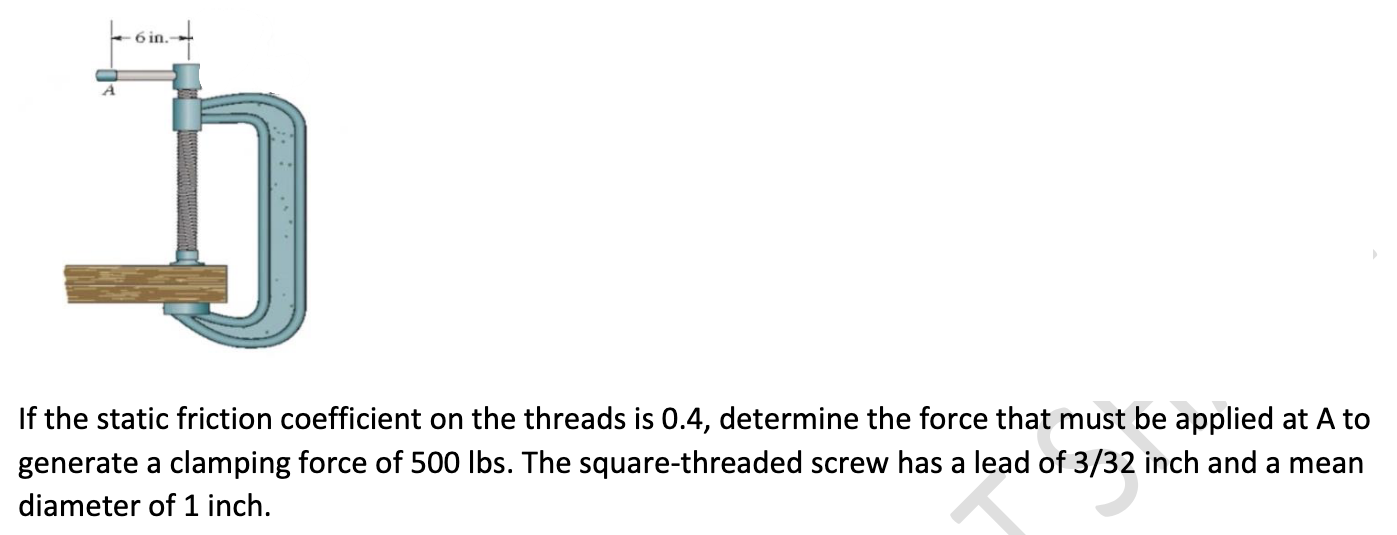

If the static friction coefficient on the threads is 0.4, determine the force that must be applied at \( A \) to generate a clamping force of 500 lbs . The square-threaded screw has a lead of \(3/32\) inch and a mean diameter of 1 inch. Create a free body diagram.
If the static friction coefficient on the threads

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
