Question: Replace the two forces acting on the frame by a wrench. Write both the force R and the moment M of the wrench as vectors

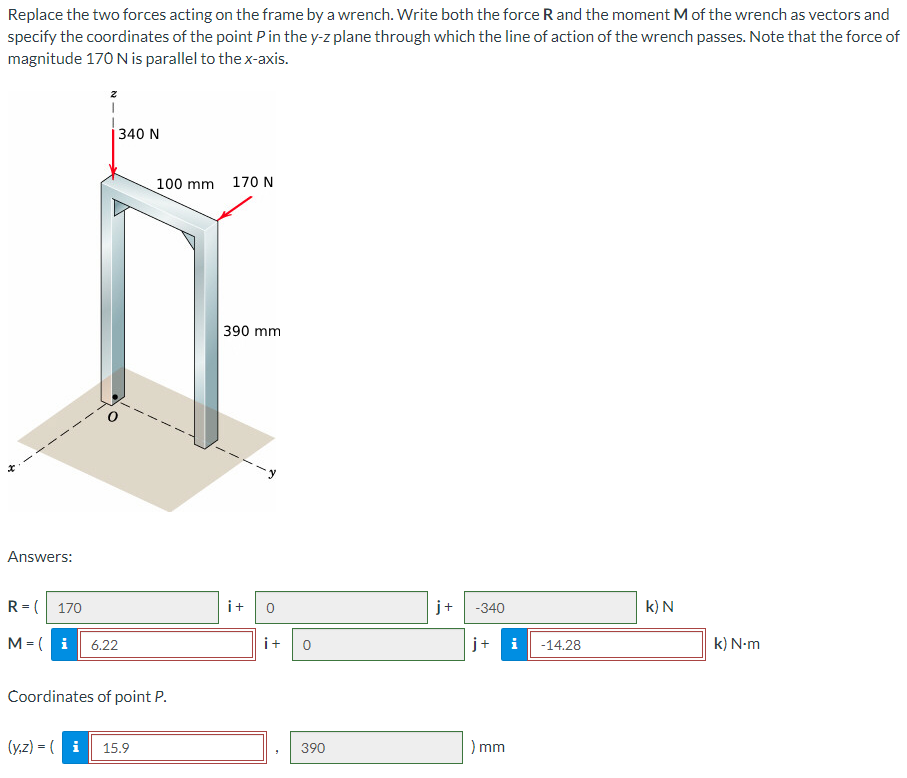

Replace the two forces acting on the frame by a wrench. Write both the force R and the moment M of the wrench as vectors and specify the coordinates of the point

P

in the

y -

z plane through which the line of action of the wrench passes. Note that the force of magnitude

170

N is parallel to the

x -

axis.

Answers:

Coordinates of point

P .

If the answer is correct I will UPVOTE!!!

Replace the two forces acting on the frame by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Replace the two forces acting on the frame by a wrench. Write both the force R and the momentM of the wrench as vectors and specity the coordinates of the point P in the y-z plane through which the...

Replace the two forces acting on the rectangular solid by a wrench. Write the force R and moment M as vectors and specify the coordinates of the point P in the x - y plane through which the line of...

Replace the three forces acting on the plate by a wrench. Suppose that FA = { 6 0 0 i } N , FB = { 4 5 0 k } N , and FC = { 2 0 0 j } N . Part A . Determine the magnitude of the force of the wrench....

Replace the three forces acting on the plate by a wrench. Suppose that FA = { 6 0 0 i } N , FB = { 4 5 0 k } N , and FC = { 2 0 0 j } N . Part 1 Determine the magnitude of the force of the wrench....

Part B Replace the five forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F 1 = 8 5 0 N and F 2 = 4 5 0 N . Figure 1 of 1 Determine the couple moment of the wrench. Express your...

0.5 m 0.5 m 8 kN B Q4[B] 3 m 0.5 m -1.5 m 6 kN (Figure 5) S 5 kN 12 B FB-1-60jl 2 12. Fc-1-40i) FA-1-80k) (Figure 6) Replace the three forces acting on the plate by a wrench. Specify the magnitude of...

Replace the three forces acting on the plate by a wrench. Specify the magnitude of the force and couple moment for the wrench and the point P(y, z) where its line of action intersects theplate. 12...

Replace the three forces acting on the plate by a wrench. Specify the magnitude of the force and couple moment for the wrench and the point P(x, y) where its line of action intersects the plate....

Be sure to include a diagram, including all gnomes, unknowns, and any other relevant information used to solve this problem. * 4 - 1 4 8 . Replace the three forces acting on the plate by a wrench....
