if you use the following code , try to write the test bench in HDL as appeare in the task  library IEEE; use IEEE.STD_LOGIC_1164.ALL; -- fpga4student.com: FPGA projects, Verilog projects, VHDL projects -- VHDL project: Cryptographic coprocessor Design in VHDL -- VHDL code for Combinational Logic unit of the coprocessor entity structural_VHDL is port ( A_BUS: in std_logic_vector(15 downto 0); B_BUS: in std_logic_vector(15 downto 0); CTRL: in std_logic_vector(3 downto 0); RESULT: out std_logic_vector(15 downto 0) ); end structural_VHDL; architecture Behavioral of structural_VHDL is component non_linear_lookup is port ( LUTIN: in std_logic_vector(7 downto 0); LUTOUT: out std_logic_vector(7 downto 0) ); end component non_linear_lookup; component shifter is generic ( N: integer:=16 ); Port ( SHIFTINPUT : in STD_LOGIC_VECTOR(N-1 downto 0); SHIFT_Ctrl : in STD_LOGIC_VECTOR(3 downto 0); SHIFTOUT: out STD_LOGIC_VECTOR(N-1 downto 0) ); end component shifter; component ALU is port ( ABUS: in std_logic_vector(15 downto 0); BBUS: in std_logic_vector(15 downto 0); ALUctrl: in std_logic_vector(3 downto 0); ALUOUT: out std_logic_vector(15 downto 0) ); end component ALU; signal tmp_out1,tmp_out2,tmp_out3: std_logic_vector(15 downto 0); signal lut_out: std_logic_vector(7 downto 0); begin ------------- -- ALU Unit-- ------------- ALU_unit: ALU port map( ABUS => A_BUS, BBUS => B_BUS,ALUctrl => CTRL,ALUOUT => tmp_out1); ----------------- -- Shifter Unit-- ----------------- shifter_unit: shifter generic map ( N => 16) -- shifter port map( SHIFTINPUT => B_BUS, SHIFT_Ctrl => CTRL,SHIFTOUT => tmp_out2 ); ------------------------------------- -- Non-linear Lookup Operation Unit-- ------------------------------------- non_linear_lookup_unit: non_linear_lookup port map( LUTIN => A_BUS(7 downto 0), LUTOUT => lut_out); tmp_out3 15 downto 8) & lut_out; ----------------------- -- Control Logic Unit-- ----------------------- control_logic: process(CTRL,tmp_out1,tmp_out3,tmp_out2) begin case(CTRL(3 downto 3)) is when "0" => RESULT when others => case(CTRL(1 downto 0)) is when "11" => RESULT when others => RESULT end case; end case; end process control_logic; end Behavioral;

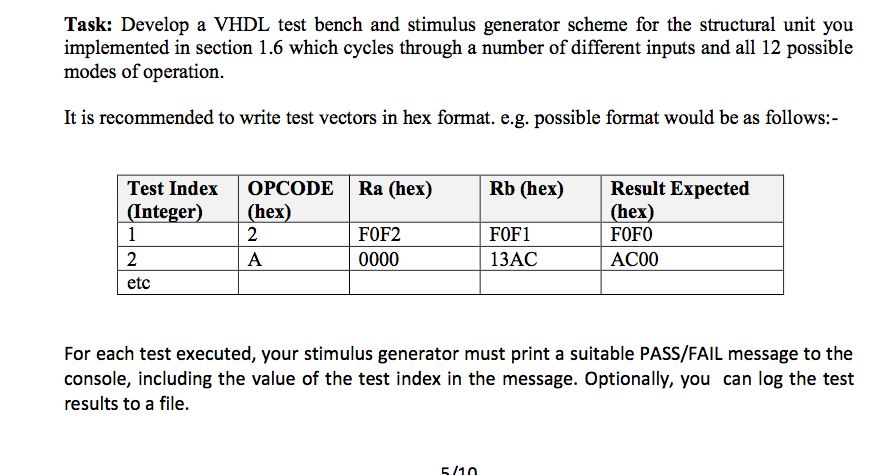

Task: Develop a VHDL test bench and stimulus generator scheme for the structural unit you implemented in section 1.6 which cycles through a number of different inputs and all 12 possible modes of operation. It is recommended to write test vectors in hex format. e.g. possible format would be as follows- Test Index OPCODE Ra (hex) Rb (hex) Result Expected Integer)(hex) (hex) 2 FOF2 FOF1 13AC 2 AC00 For each test executed, your stimulus generator must print a suitable PASS/FAIL message to the console, including the value of the test index in the message. Optionally, you can log the test results to a file. 5/10
