Question: ( ii ) For the closed loop as shown in Figure Q 4 . 1 with K = 5 0 0 , find discharge in

(ii) For the closed loop as shown in Figure Q4.1 with K=500, find discharge in all
pipes. Limit to TWO (2) iterations.

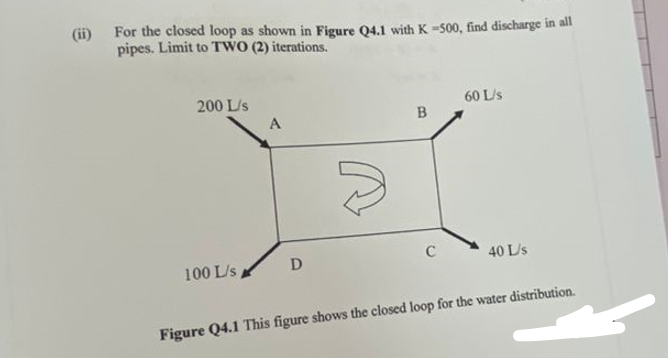

Figure Q4.1 This figure shows the closed loop for the water distribution.
