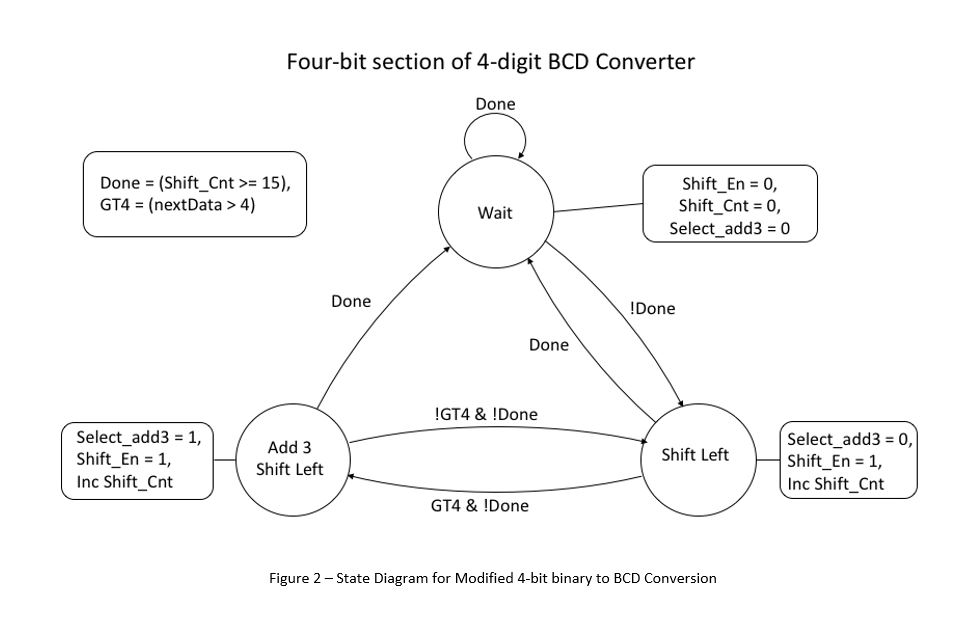

Implement a binary to BCD encoder using a state machine.

Use the 16 switches as the binary input

Use the seven-segment display as the output

Use the 100 MHz clock to advance from state to state

If possible, do in Verilog code please and use a Finite State Machine

Binary to BCD converter with "Look Ahead" BCD Binary Hex Number Starting Binary Number Shift 1 Shift 2 Shift 3 Shift 4 Shift 5 Shift 6 Shift 7 Shift 8 Shift 9 Shift 10 Shift 11 Shift 12 Shift 13 Shift 14 Shift 15 (BCD Number) Decimal Number 0 0 100 11 0 1 1 1 1 o 011 0 1 1 0 0 01 0 1 0 011 1 1 001 0 0 00 1 001 0 1 0 0 This number exceeds 4, so add 3 before shifting left (1's column) This number exceeds 4, so add 3 before shifting left (10's column) This number exceeds 4, so add 3 before shifting left(100's column) Original LSB of each group of 4 (Hexadecimal grouping) Table 2 - Example of a Modified Binary to BCD Converter With "Look Ahead
