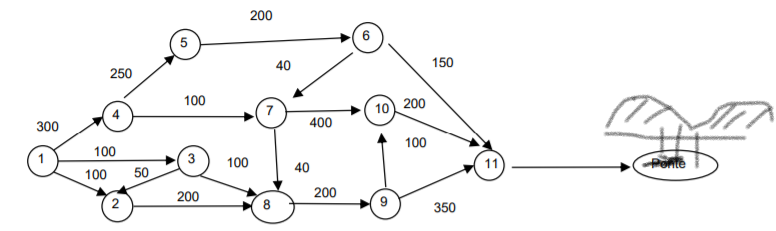

. In a small town on a river and served by a highway (which does not cross it), a bridge will be built to provide a connection. a bridge will be built to ensure the connection. The network of roads that follow the highway and that will allow access to the The network of roads that will allow access to the projected bridge has the following design, where the values are the hourly traffic capacity:

You want to know the bridge sizing in terms of minimum hourly circulation capacity so that there are no bottlenecks. 5.1 State which model should be applied? 5.2 Solve and state the solution, justifying your answer appropriately!

200 40 150 250 100 10 200 300 400 100 100 100 3 100 40 11 Ponte 50 200 200 350
