Question: in Multisim Fig. 5 . 1 . Operational Amplifier Terminals: 7 4 1 IC 4 . Simulation Layout: I. Design the inverting amplifier shown in

in Multisim
Fig. 5.1. Operational Amplifier
Terminals: 741 IC
4. Simulation Layout:

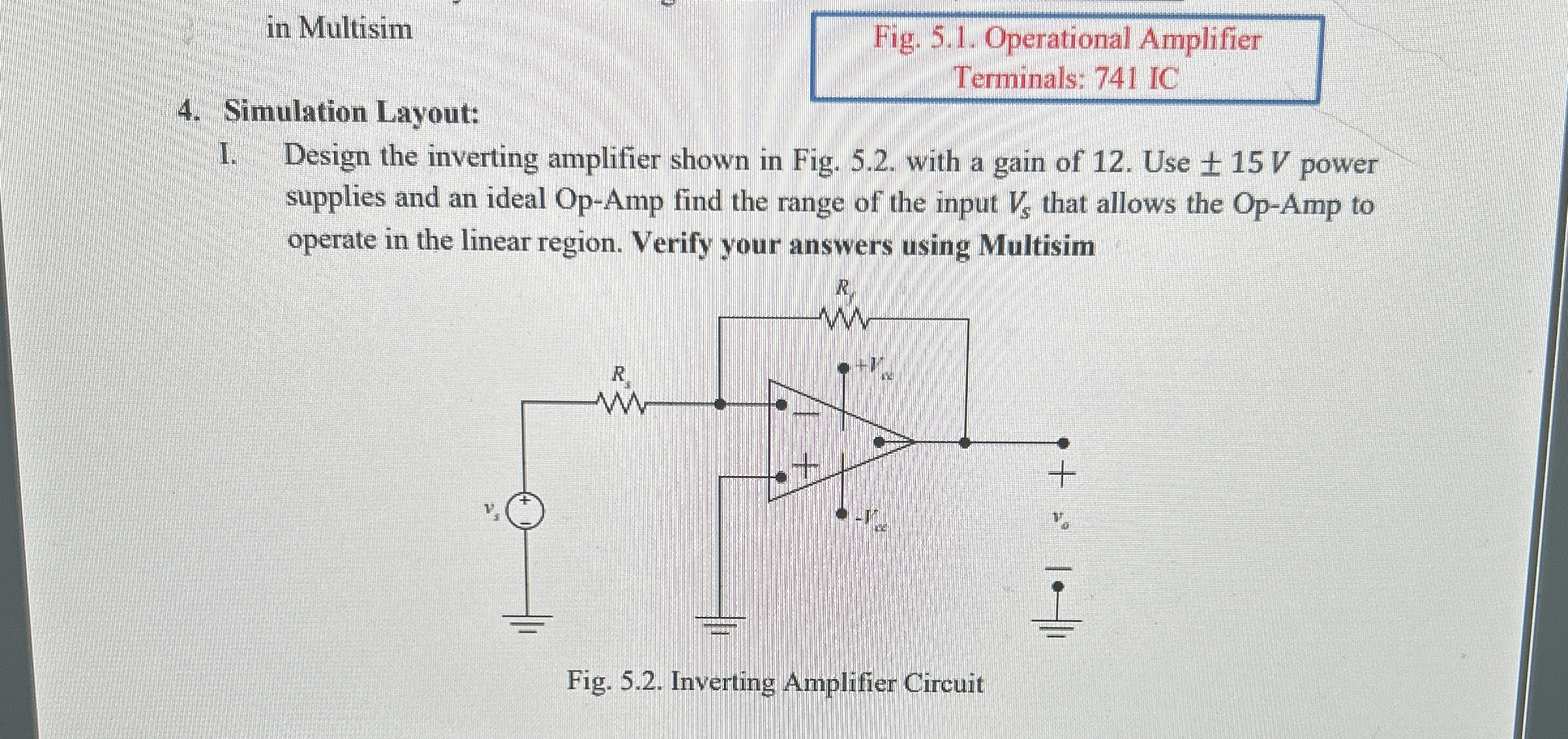

I. Design the inverting amplifier shown in Fig. 5.2. with a gain of 12. Use +-15V power supplies and an ideal Op-Amp find the range of the input Vs that allows the Op-Amp to operate in the linear region. Verify your answers using Multisim
Can you sheo circuit in multisim?
in Multisim Fig. 5 . 1 . Operational Amplifier

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
