Question: In the figure the elements have the following values: emf1 = 3.0 V, emf2 = 6.0 V, R1 = 2.0 0 and R2= 4.0 0.

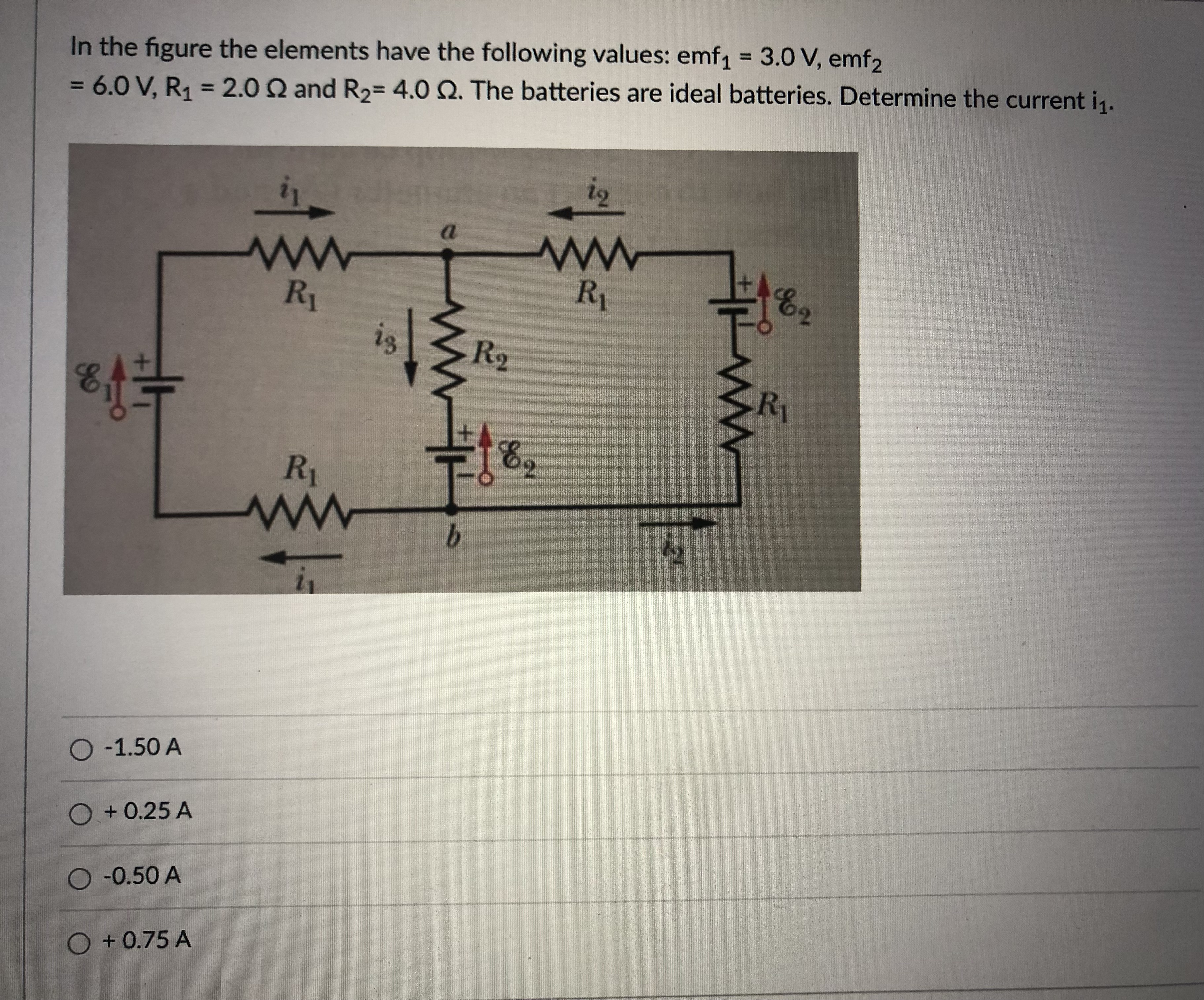

In the figure the elements have the following values: emf1 = 3.0 V, emf2 = 6.0 V, R1 = 2.0 0 and R2= 4.0 0. The batteries are ideal batteries. Determine the current i1. WW WW R1 R1 T is R2 8 R R1 WW b O -1.50 A O + 0.25 A O -0.50 A O + 0.75 A
