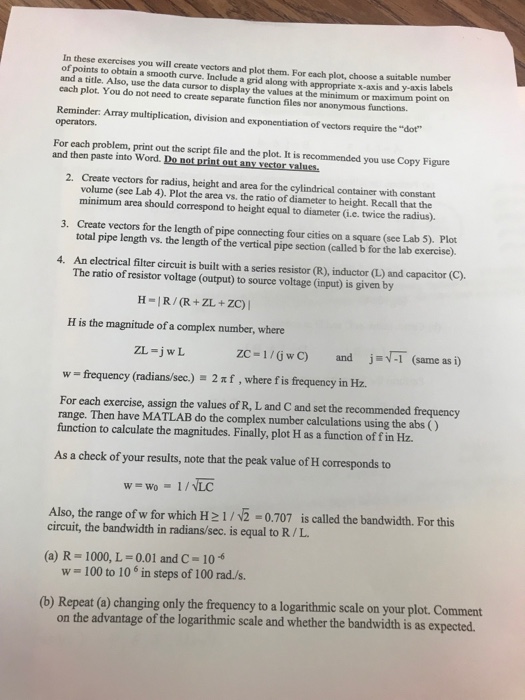

In these exercises you will create vectors and plot them. For each plot, choose a suitable number of points to obtain a smooth curve. Include a grid along with appropriate x-axis and y-axis labels and a title. Also, use the data cursor to display the values at the minimum or maximum point on each plot. You do not need to create separate function files nor anonymous functions. Reminder: Array multiplication, division and exponentiation of vectors require the "dot operators. For each problem, print out the script file and the plot. It is recommended you use Copy Figure and then paste into Word. Do not print out any vector values Create vectors for radius, height and area for the cylindrical container with constant volume (see Lab 4). Plot the area vs. the ratio of diameter to height. Recall that the minimum area should correspond to height equal to diameter (i.e. twice the radius). 2. 3. Create vectors for the length of pipe connecting four cities on a square (see Lab 5). Plot total pipe length vs. the length of the vertical pipe section (called b for the lab exercise) An electrical filter circuit is built with a series resistor (R), inductor (L) and capacitor (C). The ratio of resistor voltage (output) to source voltage (input) is given by 4. H is the magnitude of a complex number, where ZL-jwL zc-1/GwC) andV (same as i) w frequency (radians/sec.)2xf,where fis frequency in Hz For each exercise, assign the values of R, L and C and set the recommended frequency range. Then have MATLAB do the complex number calculations using the abs () function to calculate the magnitudes. Finally, plot H as a function off in Hz. As a check of your results, note that the peak value of H corresponds to Also, the range of w for which H ??2-0.707 is called the bandwidth. For this circuit, the bandwidth in radians/sec. is equal to R/L (a) R=1000, L = 0.01 and C-10-6 w 100 to 106 in steps of 100 rad/s. (b) Repeat (a) changing only the frequency to a logarithmic scale on your plot. C on the advantage of the logarithmic scale and whether the bandwidth is as ex In these exercises you will create vectors and plot them. For each plot, choose a suitable number of points to obtain a smooth curve. Include a grid along with appropriate x-axis and y-axis labels and a title. Also, use the data cursor to display the values at the minimum or maximum point on each plot. You do not need to create separate function files nor anonymous functions. Reminder: Array multiplication, division and exponentiation of vectors require the "dot operators. For each problem, print out the script file and the plot. It is recommended you use Copy Figure and then paste into Word. Do not print out any vector values Create vectors for radius, height and area for the cylindrical container with constant volume (see Lab 4). Plot the area vs. the ratio of diameter to height. Recall that the minimum area should correspond to height equal to diameter (i.e. twice the radius). 2. 3. Create vectors for the length of pipe connecting four cities on a square (see Lab 5). Plot total pipe length vs. the length of the vertical pipe section (called b for the lab exercise) An electrical filter circuit is built with a series resistor (R), inductor (L) and capacitor (C). The ratio of resistor voltage (output) to source voltage (input) is given by 4. H is the magnitude of a complex number, where ZL-jwL zc-1/GwC) andV (same as i) w frequency (radians/sec.)2xf,where fis frequency in Hz For each exercise, assign the values of R, L and C and set the recommended frequency range. Then have MATLAB do the complex number calculations using the abs () function to calculate the magnitudes. Finally, plot H as a function off in Hz. As a check of your results, note that the peak value of H corresponds to Also, the range of w for which H ??2-0.707 is called the bandwidth. For this circuit, the bandwidth in radians/sec. is equal to R/L (a) R=1000, L = 0.01 and C-10-6 w 100 to 106 in steps of 100 rad/s. (b) Repeat (a) changing only the frequency to a logarithmic scale on your plot. C on the advantage of the logarithmic scale and whether the bandwidth is as ex
