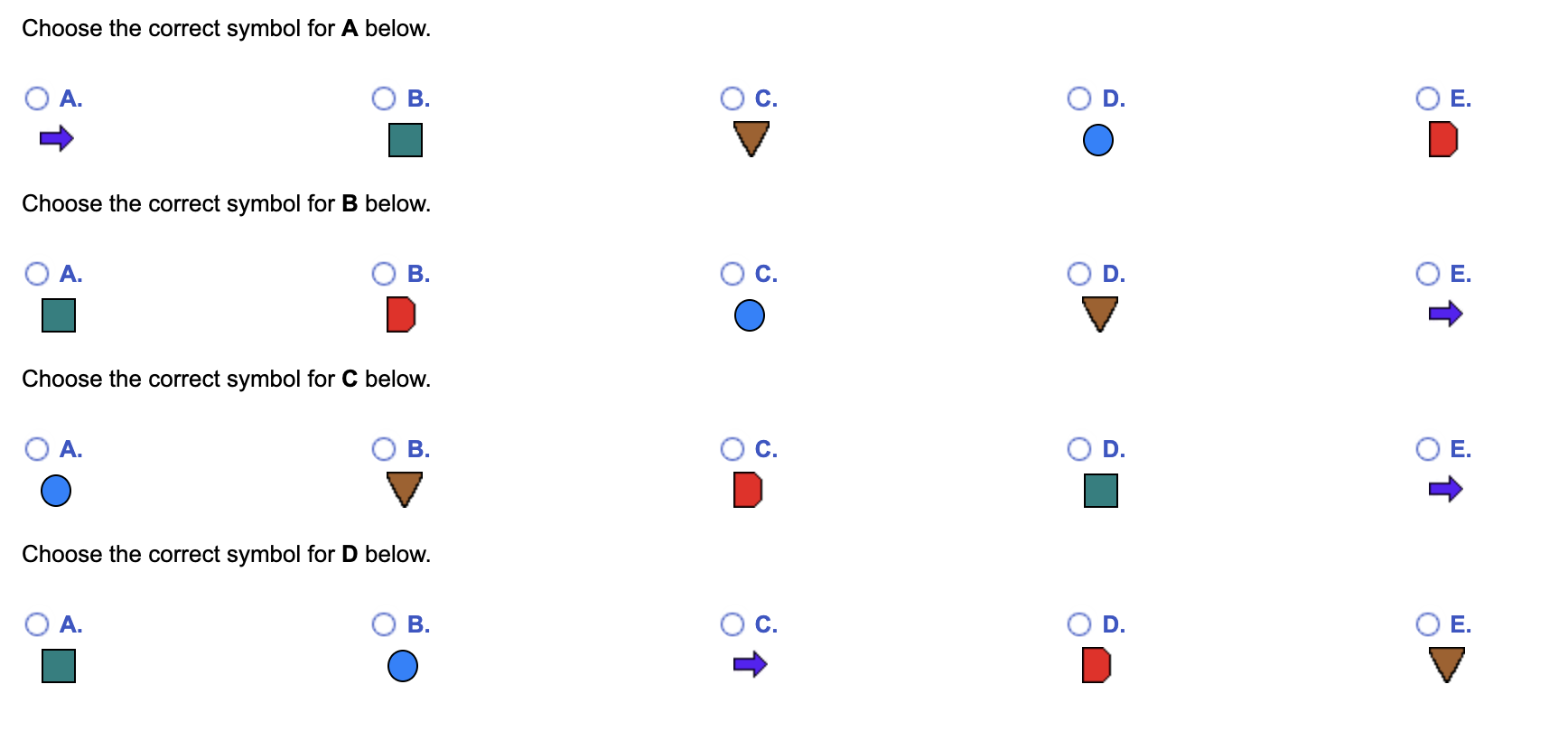

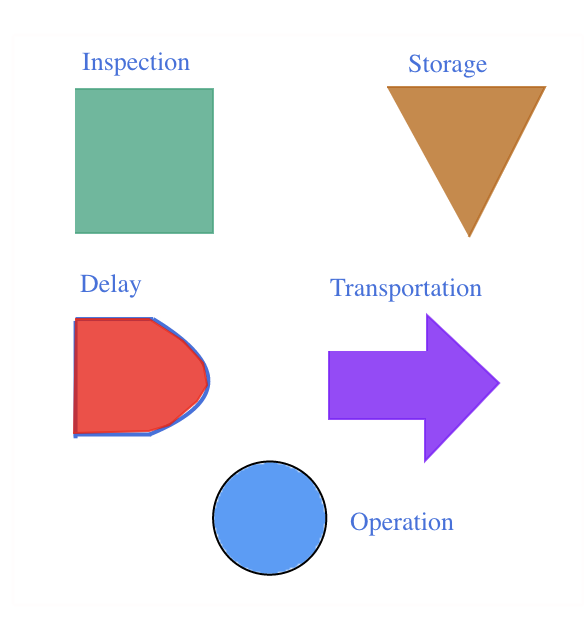

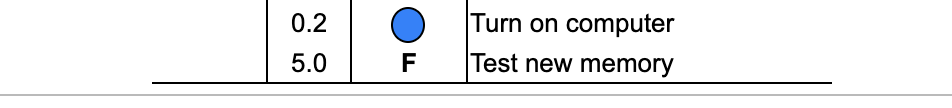

Inspection Storage Delay Transportation Operation Distance Time Chart Process (ft) (mins) Symbols description 0.2 Turn computer off 2.0 Disconnect all cables 28 1.2 Move computer to table top 1.7 Remove screws from cover 1.2 3 0.1 B 0.8 5 0.2 1.2 1.2 Remove cover Set cover on floor Find board to be replaced Bring box with new board to table Unpacknew board Remove old board Insert new board Set jumpers Set DIP switches Replace cover Replace screws in cover Move computer to desktop Install cabling 1.7 1.7 1.7 D 1.6 1.7 28 0.6 3.0 0.2 O Turn on computer Test new memory 5.0 F Choose the correct symbol for A below. O A. B. OC. D. E. Choose the correct symbol for B below. A. B. O c. OD. O E. Choose the correct symbol for C below. A. B. C. D. E. Choose the correct symbol for D below. A. O E. Choose the correct symbol for E below. A. B. D. E. Choose the correct symbol for F below. A. B. C. D. E. Fill in the table below. (Round your responses to one decimal place as needed.) Summary Total Number Operation Transportation Inspect Delay Store 0 Vert. Dist. (ft) Hor. Dist. (ft) Time (min)
