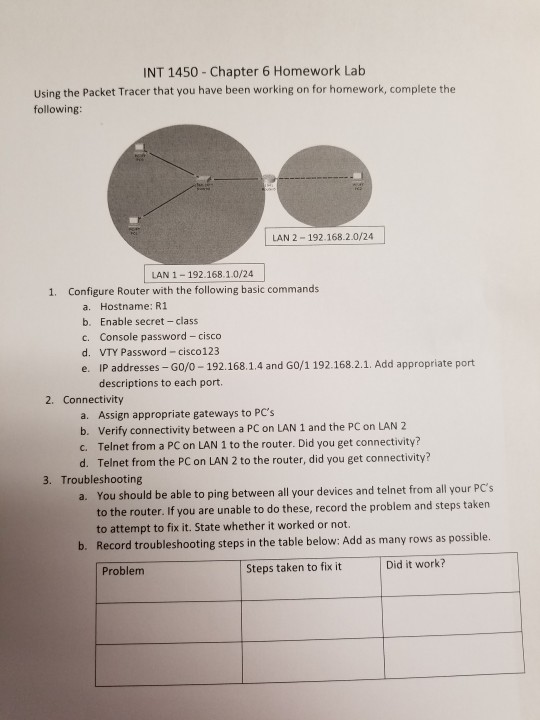

INT 1450 - Chapter 6 Homework Lab Using the Packet Tracer that you have been working on for homework, complete the following LAN 2-192.168.2.0/24 LAN 1- 192.168.1.0/24 1. Configure Router with the following basic commands a. Hostname: R1 b. Enable secret - class c. Console password -cisco d. VTY Password -cisco123 e. IP addresses - Go/o 192.168.1.4 and G0/1 192.168.2.1. Add appropriate port descriptions to each port. 2. Connectivity a. Assign appropriate gateways to PC's b. Verify connectivity between a PC on LAN 1 and the PC on LAN 2 c. Telnet from a PC on LAN 1 to the router. Did you get connectivity? d. Telnet from the PC on LAN 2 to the router, did you get connectivity? 3. Troubleshooting You should be able to ping between all your devices and telnet from all your PC's to the router. If you are unable to do these, record the problem and steps taken to attempt to fix it. State whether it worked or not. Record troubleshooting steps in the table below: Add as many rows as possible. a. Steps taken to fix it Did it work
