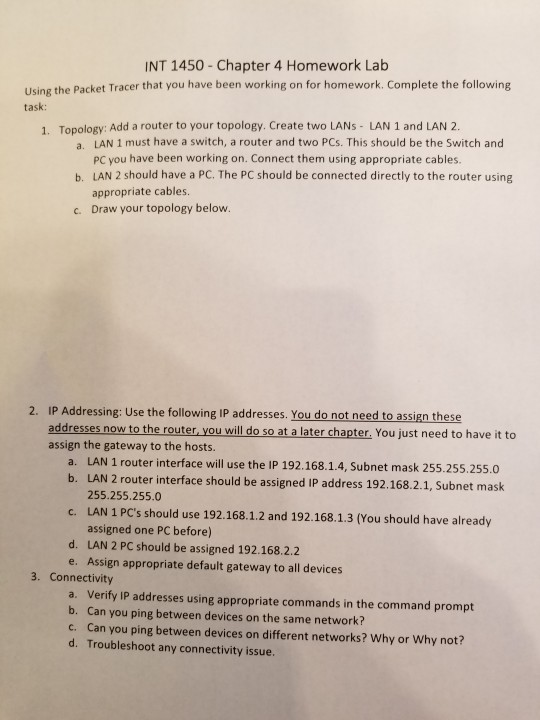

INT 1450-Chapter 4 Homework Lab Using the Packet Tracer that you have been working on for homework. Complete the following task: 1. Topology: Add a router to your topology. Create two LANs- LAN 1 and LAN 2 LAN 1 must have a switch, a router and two PCs. This should be the Switch and PC you have been working on. Connect them using appropriate cables. a. b. LAN 2 should have a PC. The PC should be connected directly to the router using appropriate cables. Draw your topology below. c. 2. IP Addressing: Use the following IP addresses. You do not need to assign these addresses now to the router,you will do so at a later chapter, You just need to have it to assign the gateway to the hosts. a. LAN 1 router interface will use the IP 192.168.1.4, Subnet mask 255.255.255.0 b. LAN 2 router interface should be assigned IP address 192.168.2.1, Subnet mask 255.255.255.0 c. LAN 1 PC's should use 192.168.1.2 and 192.168.1.3 (You should have already assigned one PC before) d. LAN 2 PC should be assigned 192.168.2.2 e. Assign appropriate default gateway to all devices 3. Connectivity a. Verify IP addresses using appropriate commands in the command prompt b. Can you ping between devices on the same network? c. Can you ping between devices on different networks? Why or Why not? d. Troubleshoot any connectivity issue
