Question: is it right ? 2. Design a MOD 5 Ripple up counter using JK Flip Flop. begin{tabular}{c|c|c|c} N0 & ac & Qb & aa

is it right ? is it right ? 2. Design a MOD 5 Ripple up counter

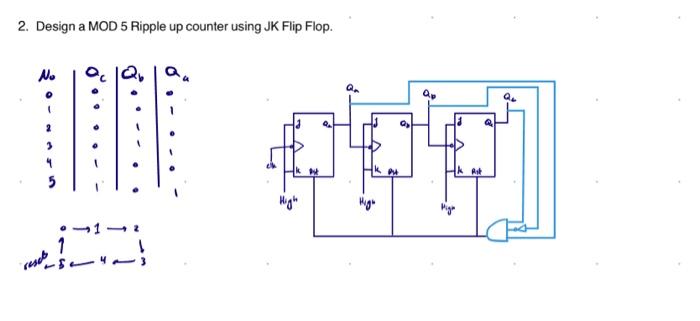

2. Design a MOD 5 Ripple up counter using JK Flip Flop. \begin{tabular}{c|c|c|c} N0 & ac & Qb & aa \\ 0 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 \\ 2 & 0 & 1 & 0 \\ 4 & 1 & 0 & \\ 5 & 1 & 0 & 1 \end{tabular}

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
