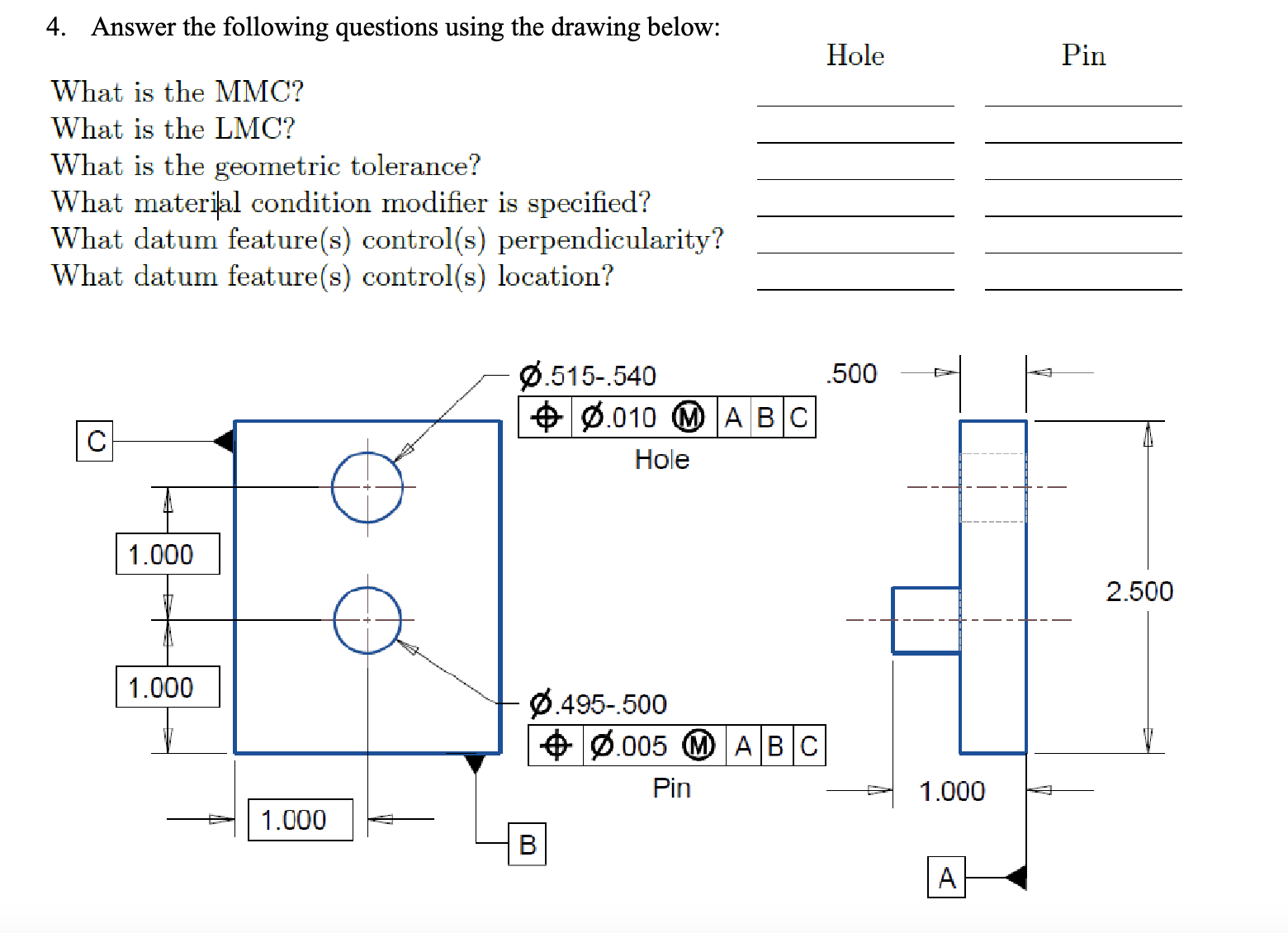

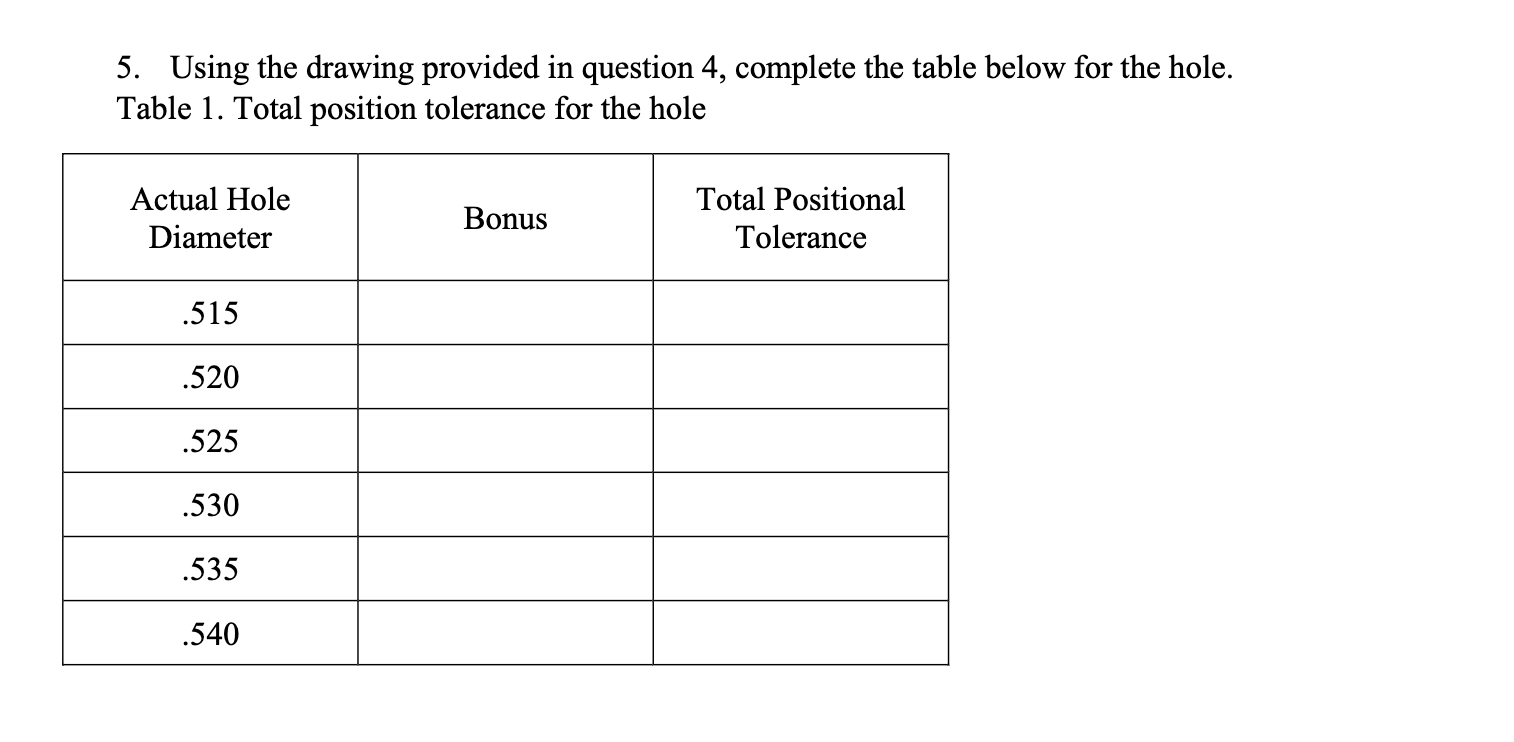

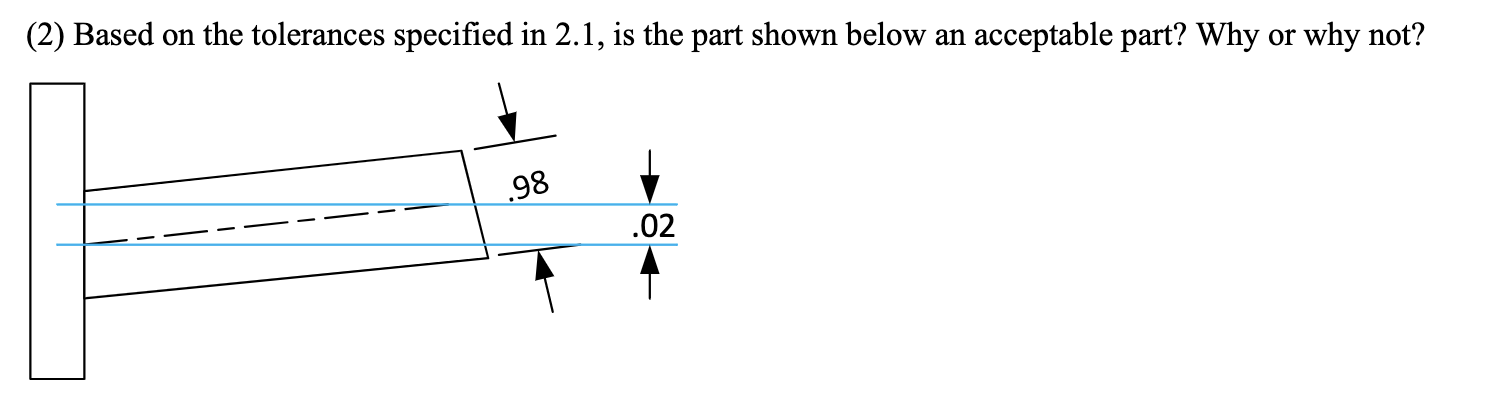

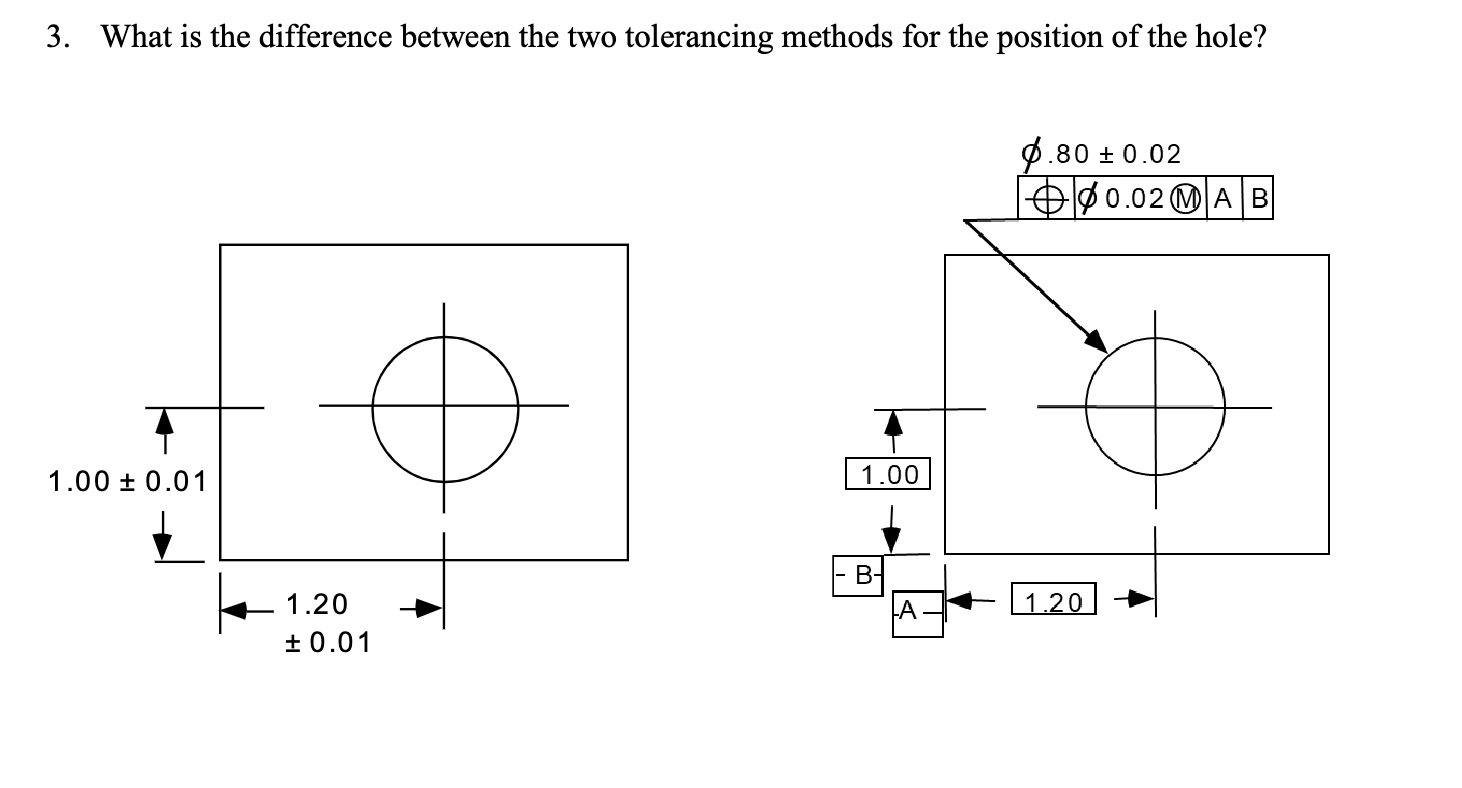

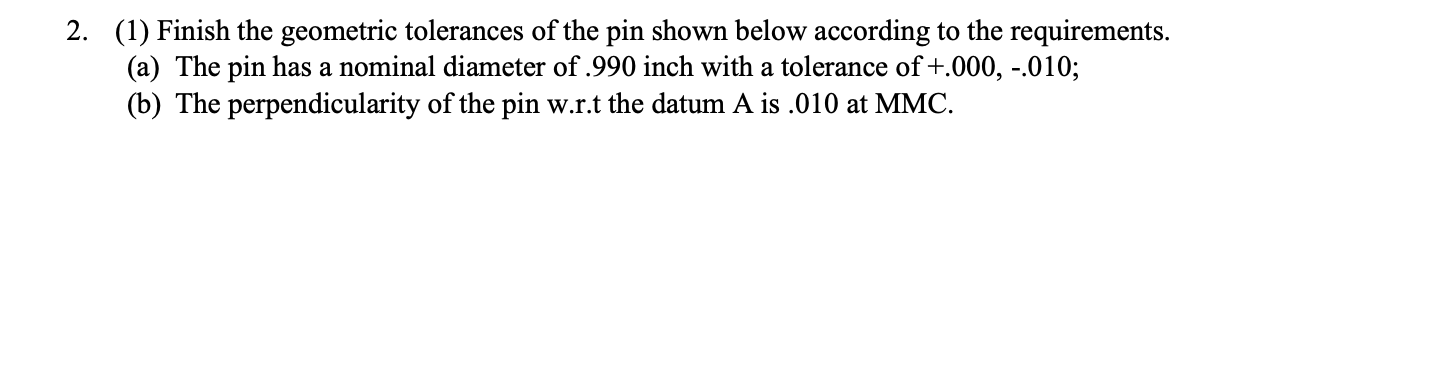

ISE 2360 Design for Manufacturing Lecture Assignment 4 Due date: Refer to the syllabus. 1. (1) Add geometric tolerances to the drawing below that specify a flatness control of .005 for the top surface of the part. 1.010+.010 1.022 (2) Is the part in the figure below an acceptable part. Why or why not? .004 A >>> (2) Based on the tolerances specified in 2.1, is the part shown below an acceptable part? Why or why not? .98 .02 3. What is the difference between the two tolerancing methods for the position of the hole? 1.00 0.01 1.00 0.80 0.02 00.02 AB B- 1.20 LA 1.20 0.01 4. Answer the following questions using the drawing below: What is the MMC? What is the LMC? What is the geometric tolerance? What material condition modifier is specified? What datum feature(s) control(s) perpendicularity? What datum feature(s) control(s) location? C 1.000 1.000 Hole Pin 0.515-.540 .500 0.010 ABC Hole 1.000 B 0.495-.500 M 0.005 ABC Pin 1.000 A 2.500 5. Using the drawing provided in question 4, complete the table below for the hole. Table 1. Total position tolerance for the hole Actual Hole Diameter .515 .520 .525 .530 .535 .540 Bonus Total Positional Tolerance 2. (1) Finish the geometric tolerances of the pin shown below according to the requirements. (a) The pin has a nominal diameter of .990 inch with a tolerance of +.000, -.010; (b) The perpendicularity of the pin w.r.t the datum A is .010 at MMC.
