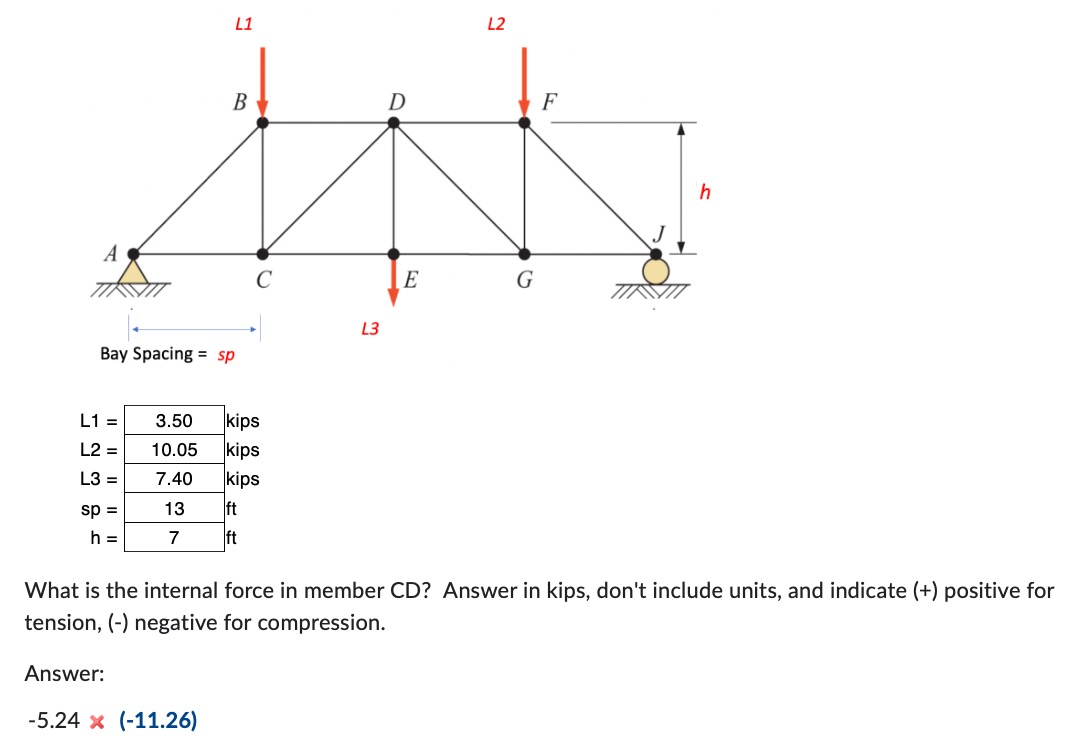

Question: L 1 = 3 . 5 0 kips L 2 = 1 0 . 0 5 kips L 3 = 7 . 4 0 kips

L1=3.50kips
L2=10.05kips
L3=7.40 kips
sp=13ft
h=7ft
What is the internal force in member CD? Answer in kips, don't include units, and indicate (+) positive for tension, (-) negative for compression.
Answer:
-5.24\times (-11.26)
L 1 = 3 . 5 0 kips L 2 = 1 0 . 0 5 kips L 3 = 7 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
