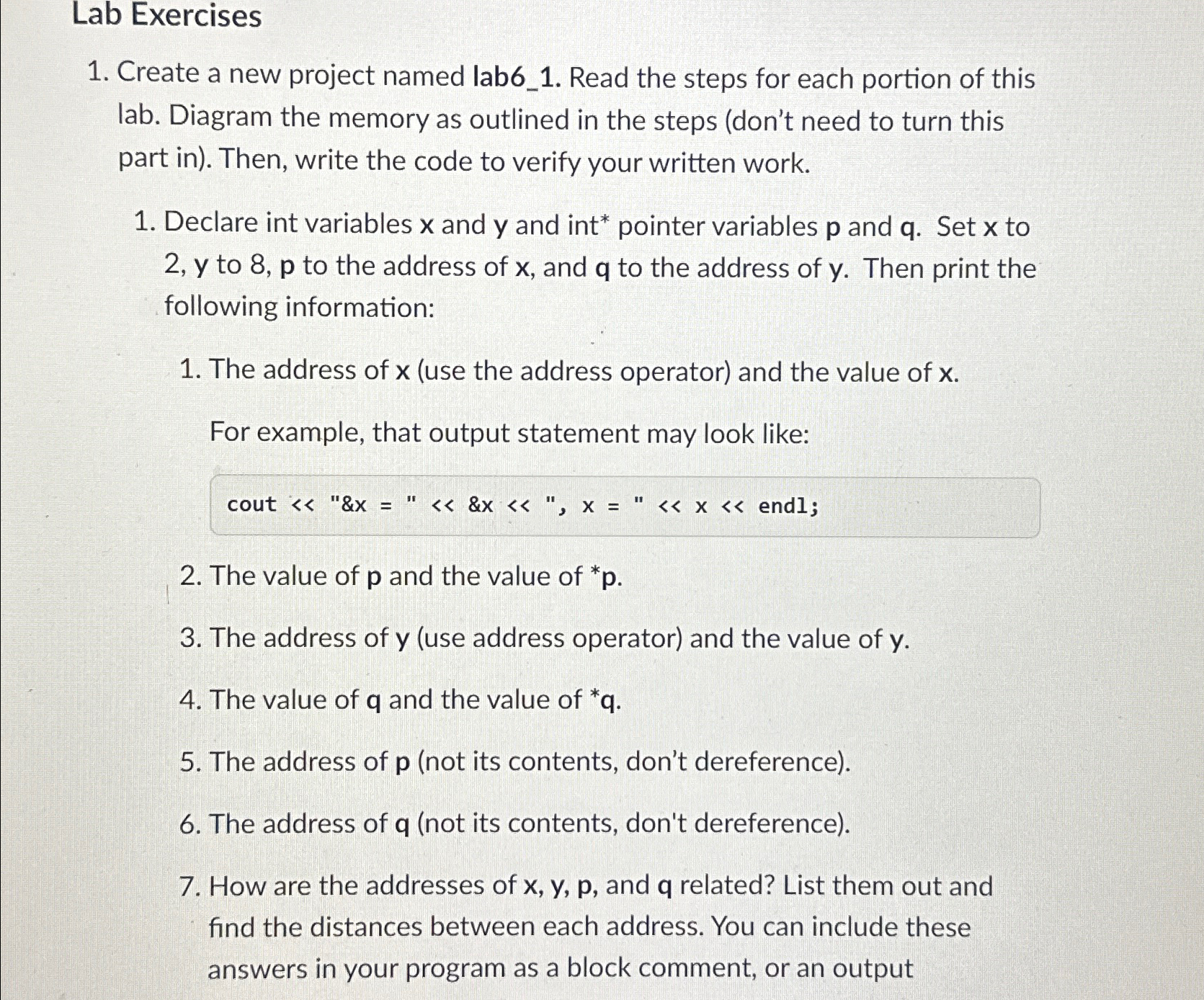

Lab Exercises

Create a new project named lab$6\_1.$ Read the steps for each portion of this lab. Diagram the memory as outlined in the steps $($don$\text{'}$t need to turn this part in$).$ Then, write the code to verify your written work.

Declare int variables $x$ and $y$ and int$*$ pointer variables $p$ and $q.$ Set $x$ to $2,y$ to $8,p$ to the address of $x,$ and $q$ to the address of $y.$ Then print the following information:

The address of $x($use the address operator$)$ and the value of $x.$

For example, that output statement may look like:

cout $$&$x=$&$x,x=x$ endl;

The value of $p$ and the value of ${?}^{**}p.$

The address of $y($use address operator$)$ and the value of $y.$

The value of $q$ and the value of ${?}^{**}q.$

The address of $p($not its contents, don't dereference$).$

The address of $q($not its contents, don't dereference$).$

How are the addresses of $x,y,p,$ and $q$ related? List them out and find the distances between each address. You can include these answers in your program as a block comment, or an output
