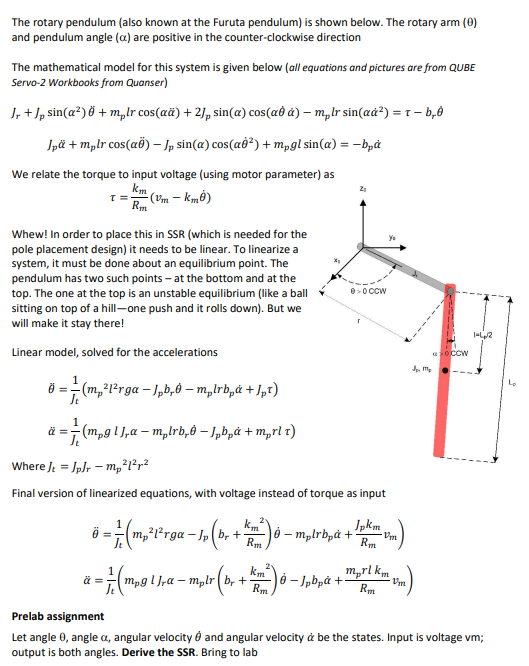

Question: Let angle theta , angle alpha , angular velocity theta ^ ( ) and angular velocity alpha ^ ( ) be

Let angle \theta , angle \alpha , angular velocity \theta ^() and angular velocity \alpha ^() be the states. Input is voltage vm;
output is both angles. Derive the State Space Representation of the system using the equations below.
Let angle \ theta , angle \ alpha , angular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
