Question: Live snow load = 2 5 psf Dead load: ( 1 ) Roof and Sheathing = 1 2 psf , ( 2 ) Rafters =

Live snow load =25 psf
Dead load: (1) Roof and Sheathing =12 psf,(2) Rafters =4lbft
Roof pitch: 5:12
Please round to the nearest one tenth (i.e.,0.1).
Total load (LL+DL) on a middle rafter after adjusting to horizontal projection =lbft

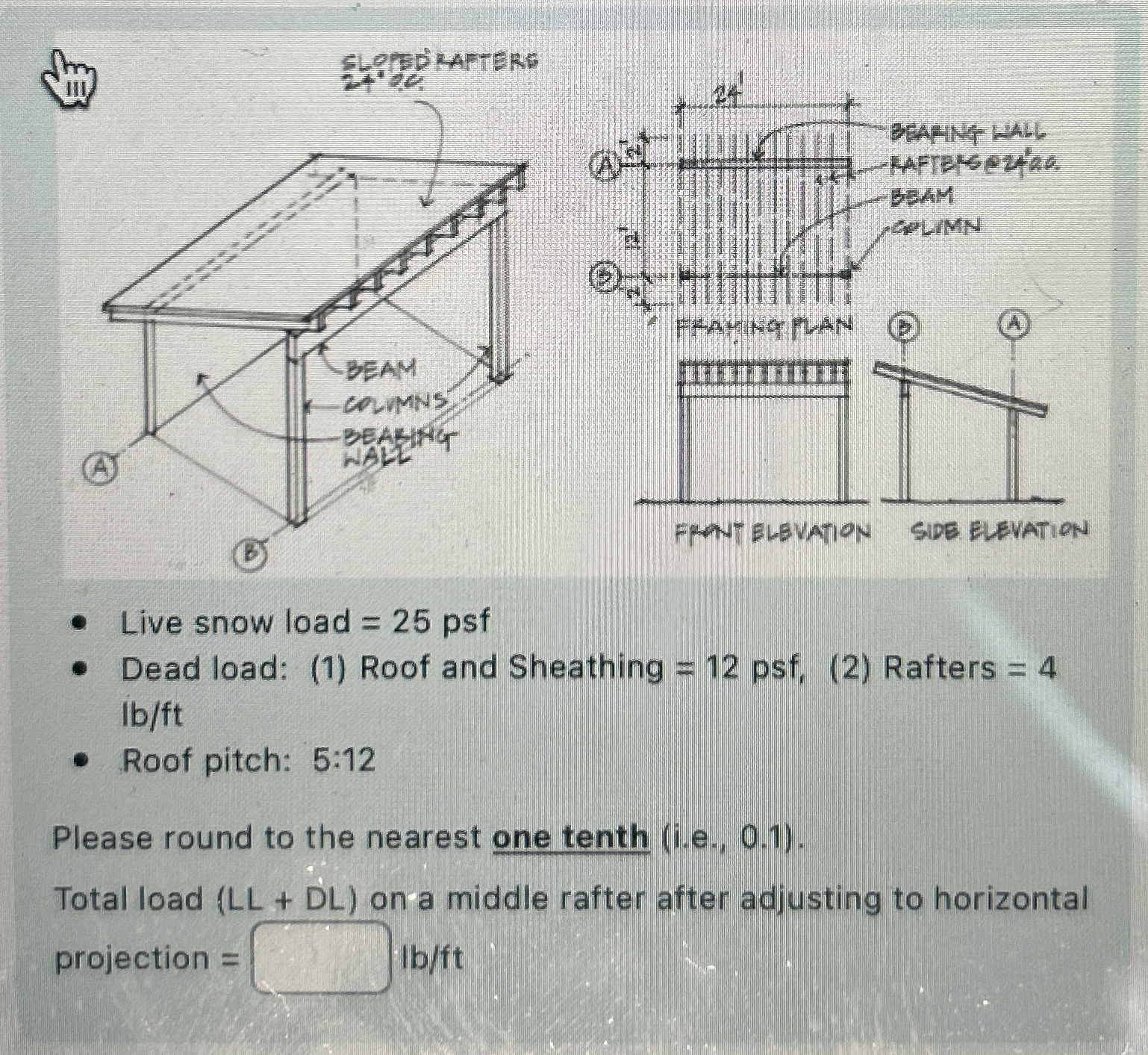

Live snow load = 2 5 psf Dead load: ( 1 ) Roof

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
