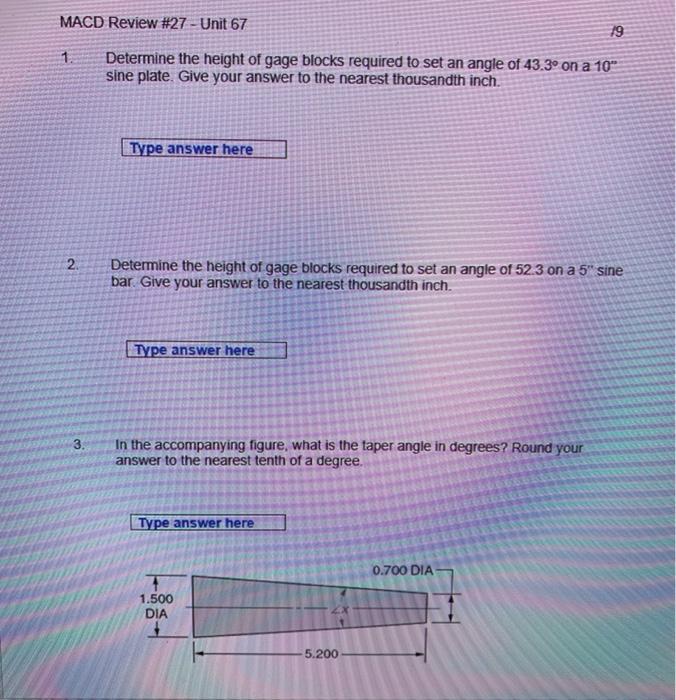

MACD Review #27 - Unit 67 19 1. Determine the height of gage blocks required to set an angle of 43.30 on a 10" sine plate. Give your answer to the nearest thousandth inch. Type answer here 2. Determine the height of gage blocks required to set an angle of 52.3 on a 5" sine bar Give your answer to the nearest thousandth inch. Type answer here 3. In the accompanying figure, what is the taper angle in degrees? Round your answer to the nearest tenth of a degree. Type answer here 0.700 DIA 1.500 DIA 5.200 MACD Review #27 P4 9 In the accompanying figure, how long is dimension X? All dimensions are in millimeters. Give your answer to two decimal places XE 82.74 DIA 278.00 MACD Assignment 113 Page 3 9. Determine the value of angle A in decimal degrees for each of the given functions. Round each answer to the nearest hundredth of a degree. a) tan A = 0.33751 Type answer here b) sec A = 1.32581 Type answer here 13 c) cot A = 0.93632 Type answer here 6. = If cos A = 0.83724, what is angle A in degrees and minutes? Round your answer to the nearest minute. /1 was determine en Round a) tan 59.899 b) 14 8. Determine the cosecant, secant, or cotangent functions of the following angles. Round the answers to 5 decimal places. a) cot 25.86 b) sec 1905' Type answer here c) csc 6558'04" Type answer here 23. A seamless brass tube and brass flange assembly is shown. The tube is pressed fit into the full 1.250-inch plate thickness. The brass used weighs 0.305 pound per cubic inch. Find the total weight of the assembly. Round the answer to the nearest tenth pound. 3.875 in. DIA 0.238 in. wall thickness 19.37 in. 1250 in. thick plate 18.63 in 18.63 in Soild Figures Solve these exercises. 21. Find the weight of the steel baseplate shown. Steel weighs 490 pounds per cubic foot. Round the answer to the nearest pound. Four holes, 150 in. DIA 3.20 in. DIA hole of 2.00 in. 14.00 in 14.00 in
