MATLAB

Problem 2 (50 pts)

A projectile is fired with an initial velocity of 250 m/s at an anglerelative to the ground. The projectile is aimed directly in theydirection, as shown in the figure below. Because of a strong wind blowing in the negativexdirection, the projectile also moves in this direction at a constant speed of 30 m/s.

The initial velocity of the projectile is

and

while in thexdirection we have a constant. The total flight time is

The velocity of the projectile in the vertical direction (the other two are known) is given by

while the position is given by

and

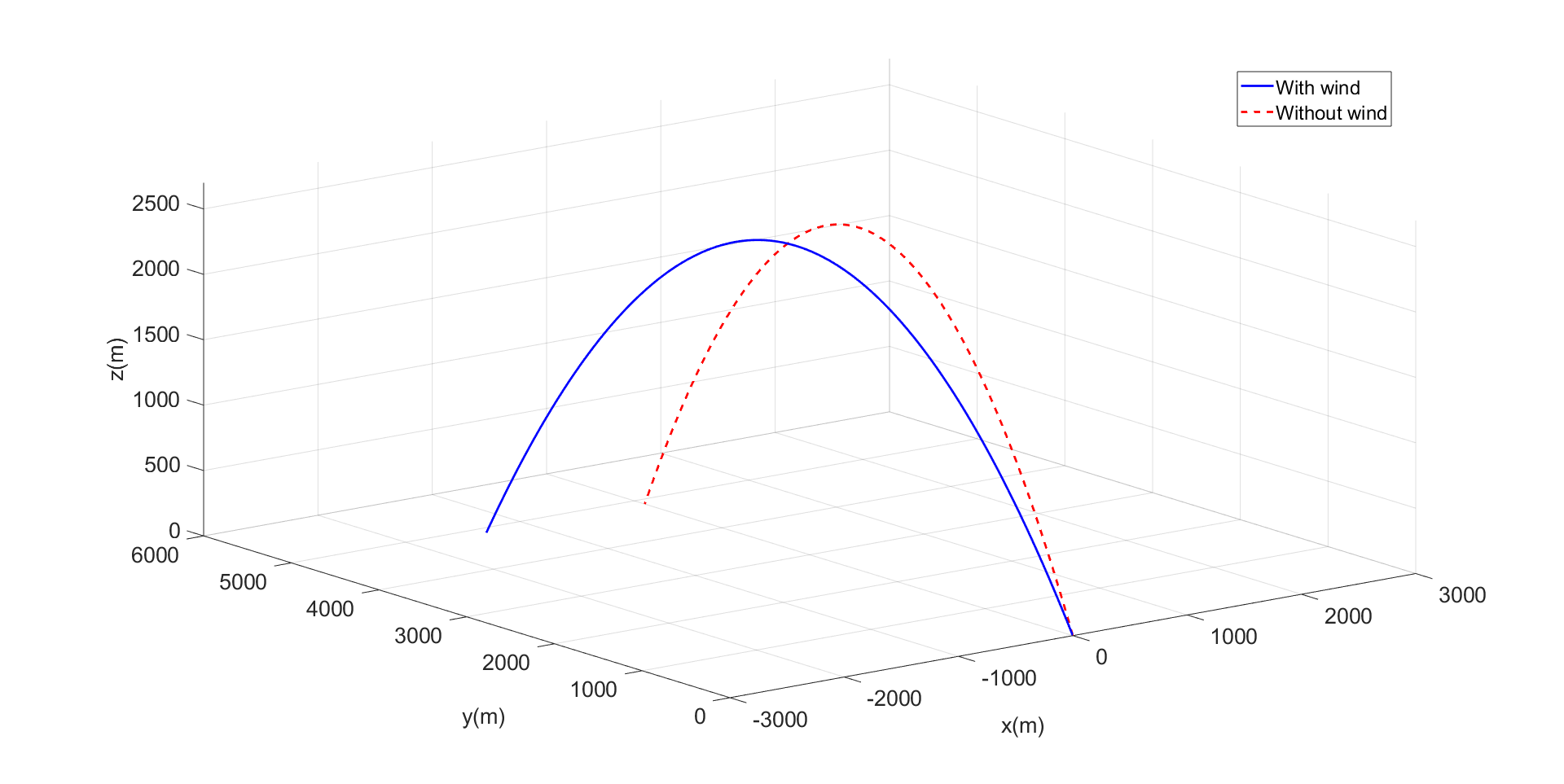

In MATLAB determine andplot the trajectory of the projectile until it hits the ground. Additionally plot in the same chart the trajectory the projectile would have followed if there was no wind. Your output should at least have the features shown below
