Micro Homework $13$

Problem $1$

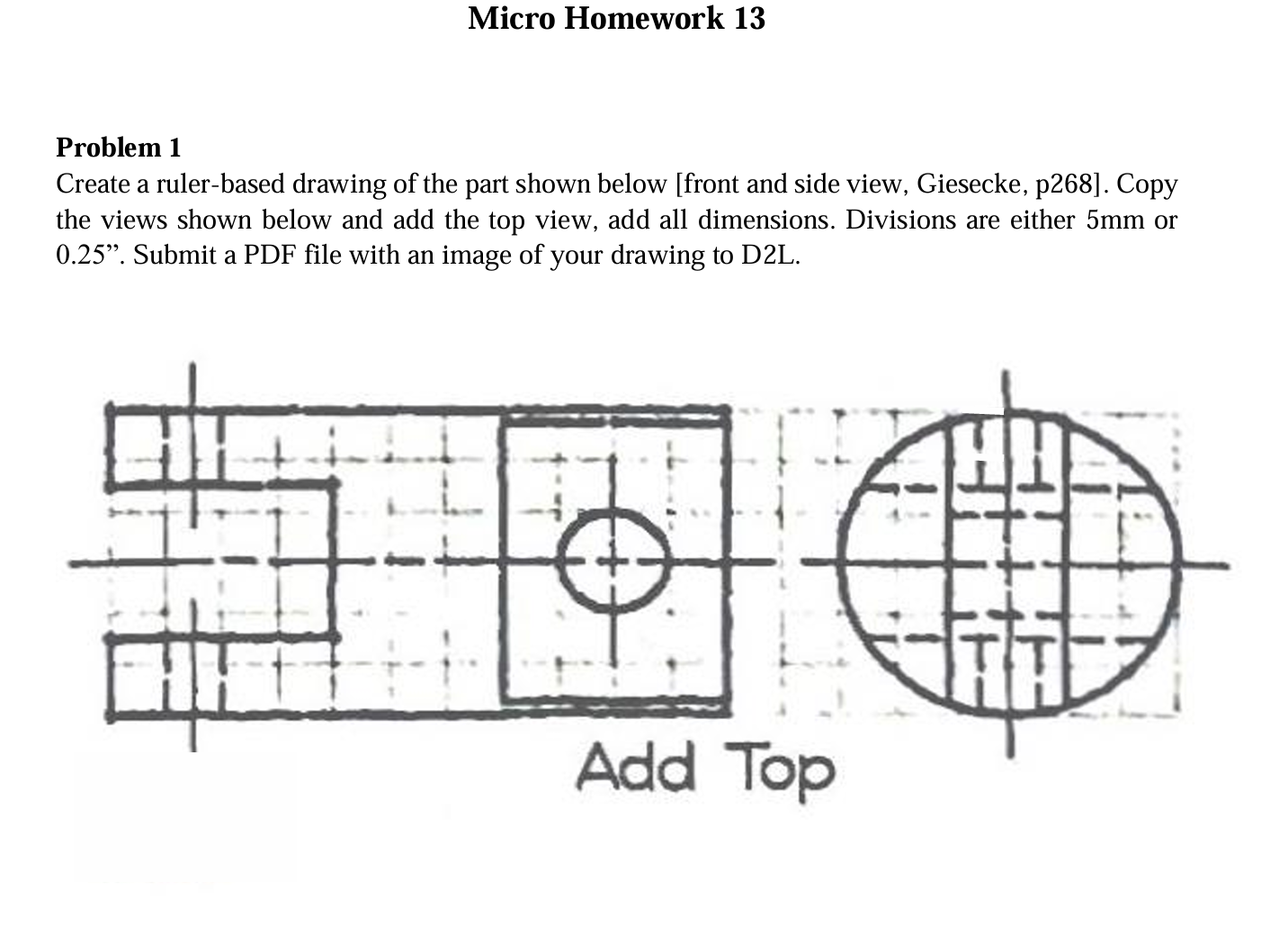

Create a ruler$-$based drawing of the part shown below $[$front and side view, Giesecke, p$268].$ Copy the views shown below and add the top view, add all dimensions. Divisions are either $5$ mm or $\backslash (0\mathrm{.}25^\{\backslash$prime $\backslash$prime$\}\backslash ).$ Submit a PDF file with an image of your drawing to D$2$L$.$
