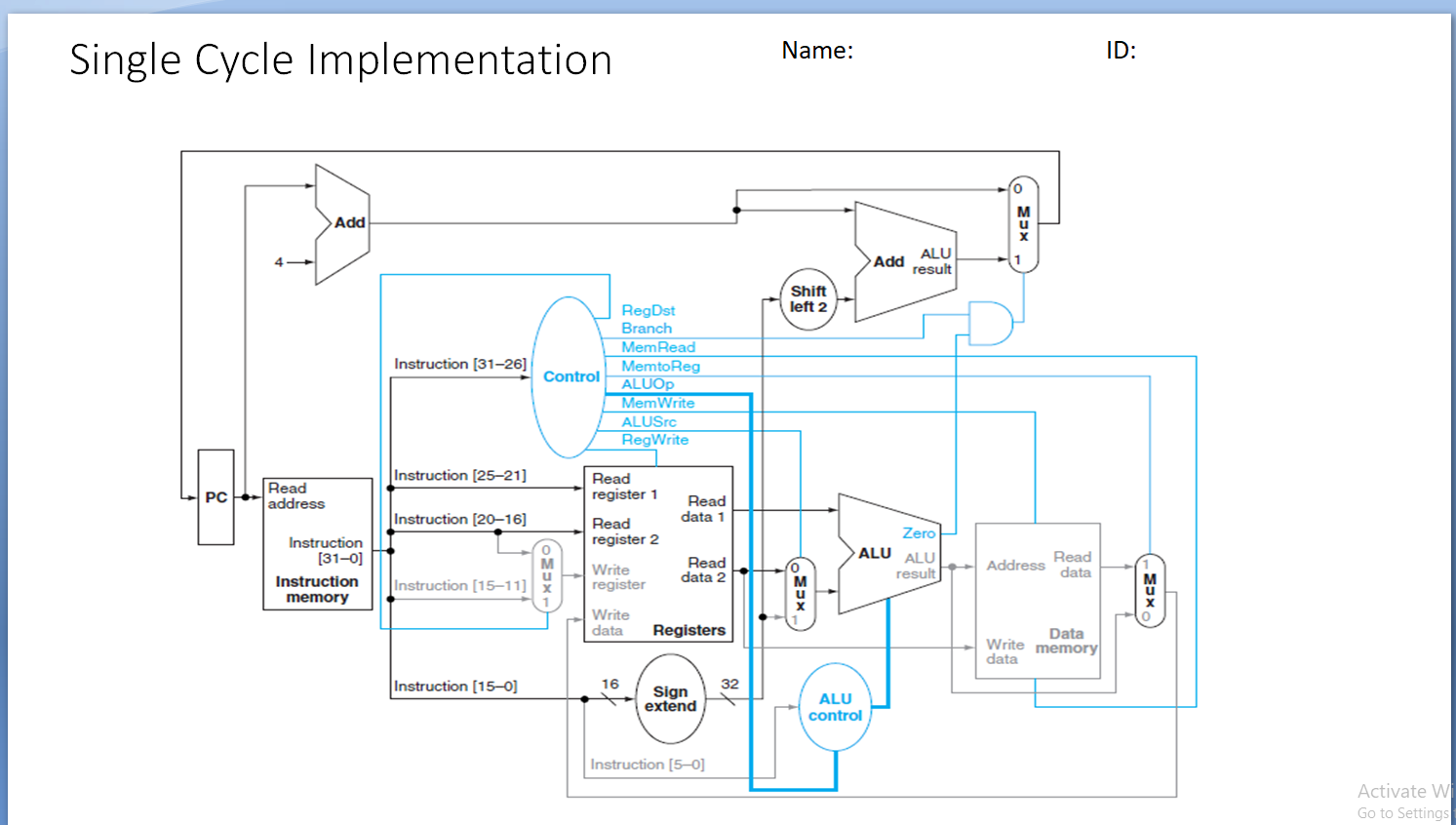

Modify the block diagram for a single-cycle data path and write down the control unit values for the following instruction str. The job of the given instruction is to store to the destination register($t0). It compares the two source registers ($s0 &$s1) and if they are equal it stores 0 otherwise it stores 1. str $t0, $s0, $s1

Name: ID: Single Cycle Implementation X-3 Add 4 Add ALU result Shift left 2 Instruction (31-26] Control RegDst Branch Mem Read Memto Reg ALUOP Mem Write ALUSrc RegWrite Instruction [25-21] PC Read address Read register 1 Read register 2 Read data 1 Instruction (20-16) Zero ALU ALU Instruction (31-0] Instruction memory Read data 2 Write register Read Address data result Instruction (15-11] **30 2x Write data Registers Data Write memory data Instruction (15-0] 16 32 Sign extend ALU control Instruction (5-0) Activate W Go to Settings
