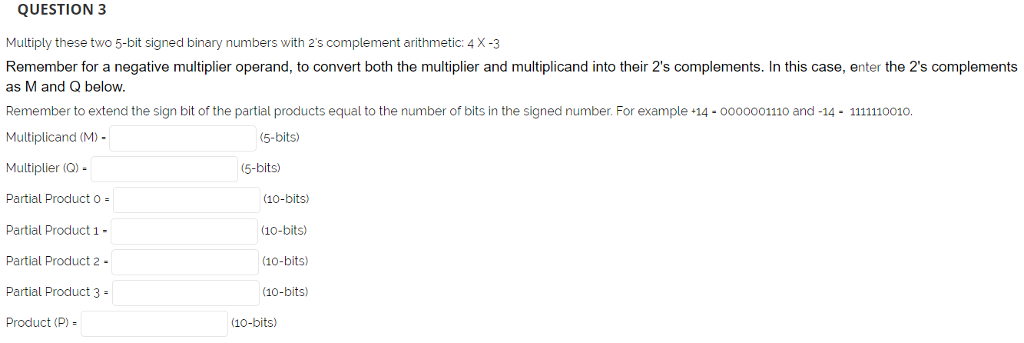

Multiply these two 5-bit signed binary numbers with 2's complement arithmetic: 4 X -3

Remember for a negative multiplier operand, to convert both the multiplier and multiplicand into their 2's complements. In this case, enter the 2's complements as M and Q below.

Remember to extend the sign bit of the partial products equal to the number of bits in the signed number. For example +14 = 0000001110 and -14 = 1111110010.

Multiplicand (M) = (5-bits)

Multiplier (Q) = (5-bits)

Partial Product 0 = (10-bits)

Partial Product 1 = (10-bits)

Partial Product 2 = (10-bits)

Partial Product 3 = (10-bits)

Product (P) = (10-bits)

QUESTION 3 Multiply these two 5-bit signed binary numbers with 2's complement arithmetic: 4 X-3 Remember for a negative multiplier operand, to convert both the multiplier and multiplicand into their 2's complements. In this case, enter the 2's complements as M and Q below. Remember to extend the sign bit of the partial products equal to the number of bits in the signed number. For example 14-0000001110 and -14- 1111110010 Multiplicand (M) Multiplier (Q)- (5-bits) (5-bits) Partial Product o (10-bits) (10-bits) (10-bits) (10-bits) Partial Product 1 - Partial Product 2- Partial Product 3- Product (P)- (10-bits)
