my AND, OR, NOT gate code:

(define OR-GATE (lambda (a b) (if (= a 1)

1

b))) (define AND-GATE (lambda (a b) (if (= a b 1)

1

0))) (define NOT-GATE (lambda (a) (if (= a 0) 1 0)))

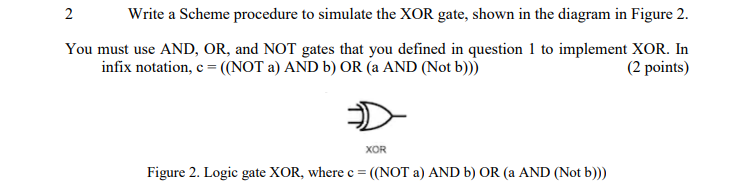

2 Write a Scheme procedure to simulate the XOR gate, shown in the diagram in Figure 2. You must use AND, OR, and NOT gates that you defined in question 1 to implement XOR. In (2 points) infix notation, c (NOT a) AND b) OR (a AND (Not b)) XOR Figure 2. Logic gate XOR, where c (NOT a) AND b) OR (a AND (Not b)))
