N is an integer that equals to the last two digits of your University ID number...

Transcribed Image Text:

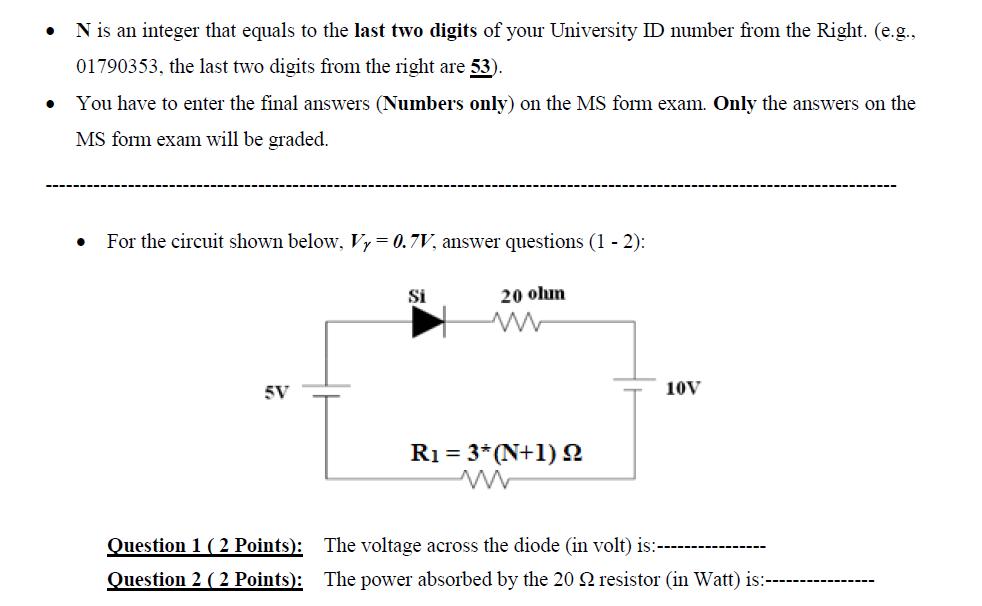

N is an integer that equals to the last two digits of your University ID number from the Right. (e.g., 01790353, the last two digits from the right are 53). You have to enter the final answers (Numbers only) on the MS form exam. Only the answers on the MS form exam will be graded. For the circuit shown below, Vy = 0.7V, answer questions (1 - 2): Si 20 olun 5V 10V R1 = 3*(N+1) Q Question 1 ( 2 Points): The voltage across the diode (in volt) is:----------- Question 2 ( 2 Points): The power absorbed by the 20 2 resistor (in Watt) is: N is an integer that equals to the last two digits of your University ID number from the Right. (e.g., 01790353, the last two digits from the right are 53). You have to enter the final answers (Numbers only) on the MS form exam. Only the answers on the MS form exam will be graded. For the circuit shown below, Vy = 0.7V, answer questions (1 - 2): Si 20 olun 5V 10V R1 = 3*(N+1) Q Question 1 ( 2 Points): The voltage across the diode (in volt) is:----------- Question 2 ( 2 Points): The power absorbed by the 20 2 resistor (in Watt) is:
