Question: Need help on solving problem 1 in detail please. Design a circuit as shown below. Find the R 1 , R 2 , R 3

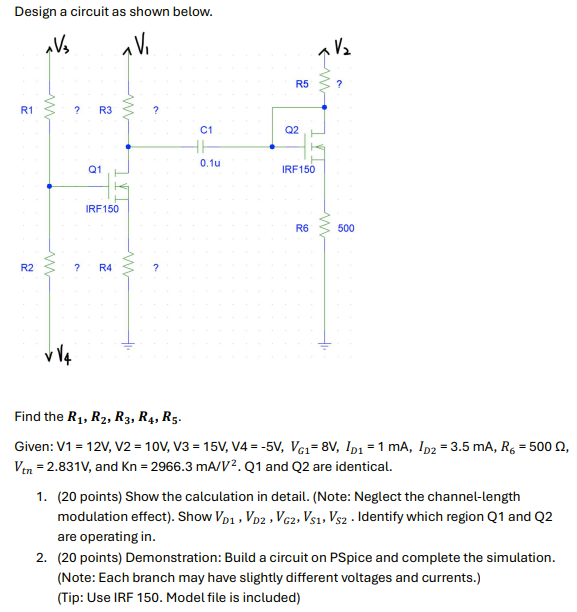

Need help on solving problem 1 in detail please. Design a circuit as shown below.
Find the R1,R2,R3,R4,R5.
Given: V1=12V,V2=10V,V3=15V,V4=-5V,VG1=8V,ID1=1mA,ID2=3.5mA,R6=500,Vtn=2.831V, and Kn=2966.3mAV2. Q1 and Q2 are identical.
(20 points) Show the calculation in detail. (Note: Neglect the channel-length modulation effect). Show VD1,VD2,VG2,VS1,VS2. Identify which region Q 1 and Q 2 are operating in.
(20 points) Demonstration: Build a circuit on PSpice and complete the simulation.
(Note: Each branch may have slightly different voltages and currents.)
(Tip: Use IRF 150. Model file is included)
Need help on solving problem 1 in detail please.
