needs help

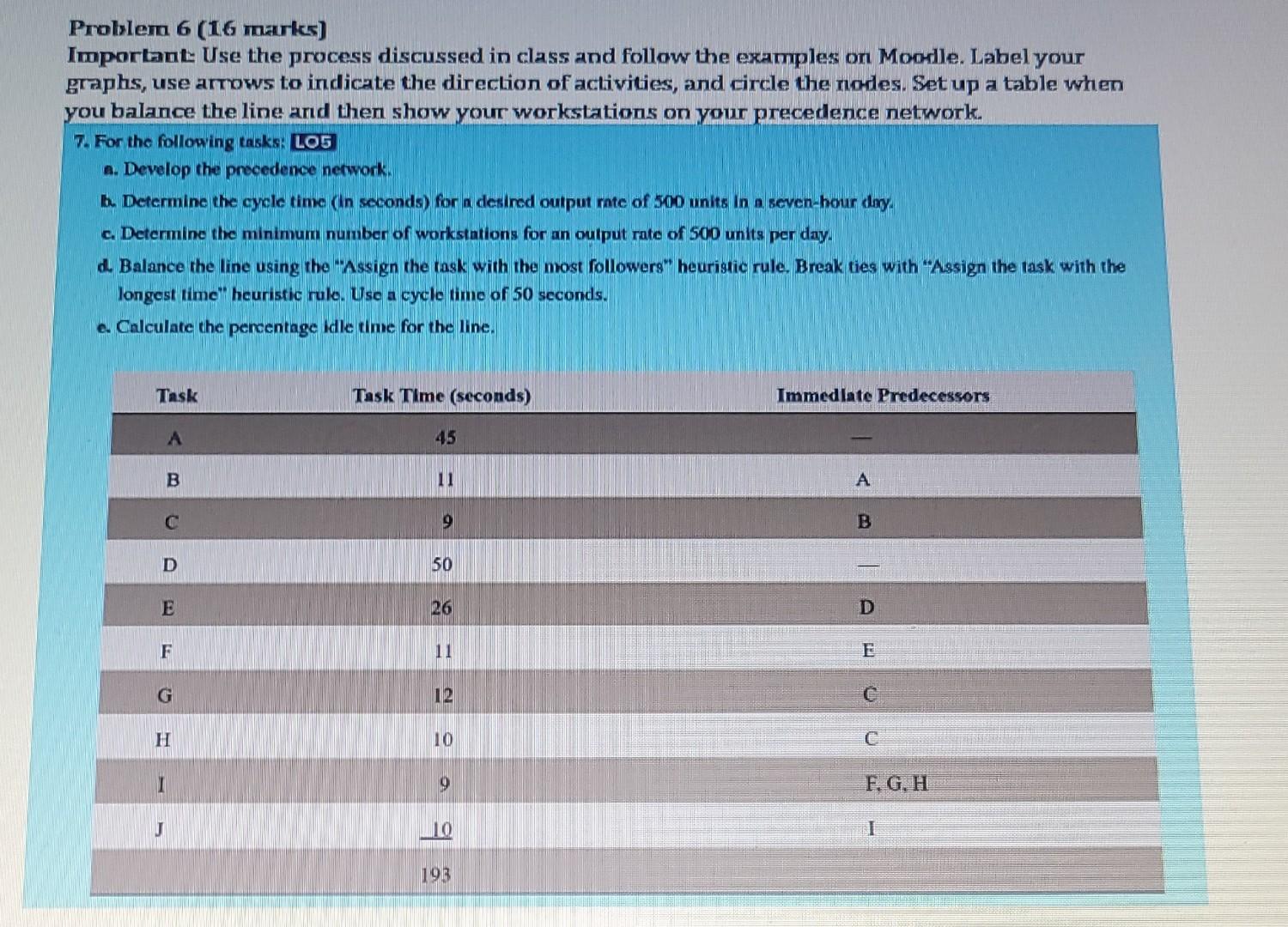

Problem 6 (16 marks) Important Use the process discussed in class and follow the examples on Moodle. Label your graphs, use arrows to indicate the direction of activities, and circle the nodes. Set up a table when you balance the line and then show your workstations on your precedence network. 7. For the following tasks: LOS a. Develop the procedence network. b. Determine the cycle time (In seconds) for a desired output rate of 500 units in a seven-hour doy. c. Determine the minimum number of workstations for an output rate of 500 units per day. d Balance the line using the "Assign the task with the most followers" heuristic rule. Break ties with "Assign the task with the longest time heuristic rulo. Use a cycle time of 50 seconds. e. Calculate the percentage Idle time for the line. Task Task Time (seconds) Immediate Predecessors A 45 B 11 A C 9 B D 50 E 26 D F E G 12 C H 10 I a F. G. H J 10 I 193
