Problem 6 (16 marks) Important: Use the process discussed in class and follow the examples on Moodle. Label your graphs, use arrows to indicate the direction of activities, and circle the nodes. Set up a table when you balance the line and then show your workstations on your precedence network.

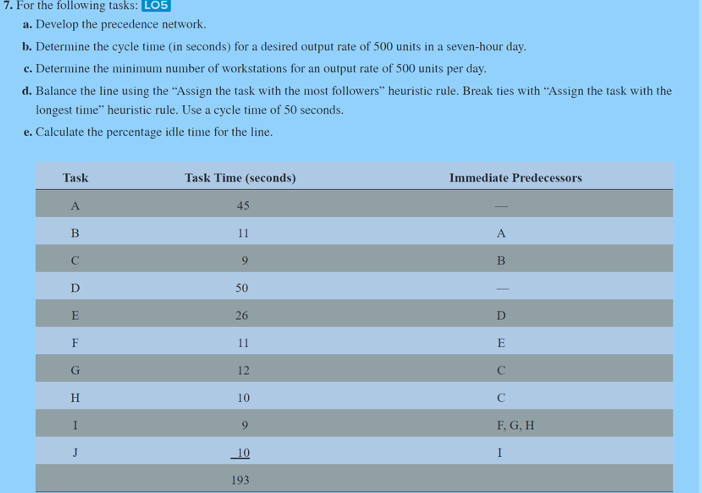

7. For the following tasks: L05 a. Develop the precedence network. b. Determine the cycle time in seconds) for a desired output rate of 500 units in a seven-hour day. c. Determine the minimum number of workstations for an output rate of 500 units per day. d. Balance the line using the "Assign the task with the most followers" heuristic rule. Break ties with "Assign the task with the longest time" heuristic rule. Use a cycle time of 50 seconds. e. Calculate the percentage idle time for the line. Task Task Time (seconds) Immediate Predecessors A 45 B. 11 A 9 B D 50 E 26 D F 11 E G 12 H 10 I 9 F, G, H J 10 I 193
