Question: Network Diagram problem and TE problem Problem 1: draw a network diagram from a matrix of Activities, Predecessors and Durations. Then you will need to

Network Diagram problem and TE problem

Network Diagram problem and TE problem Problem 1:

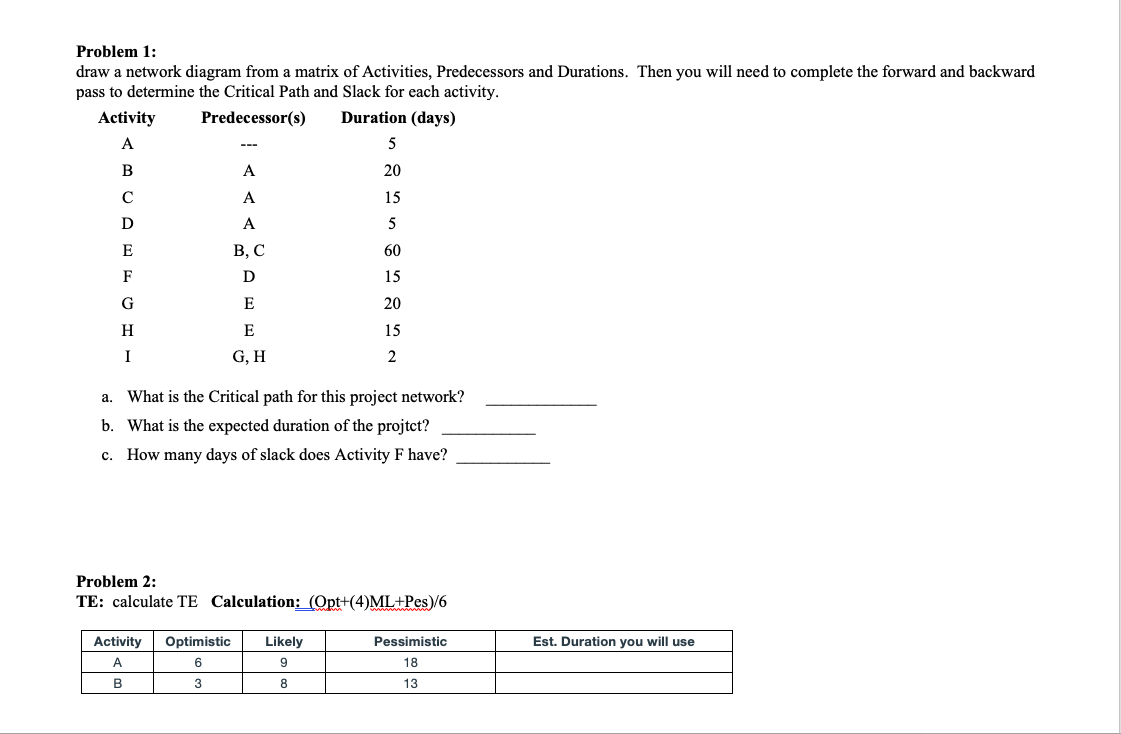

Problem 1: draw a network diagram from a matrix of Activities, Predecessors and Durations. Then you will need to complete the forward and backward pass to determine the Critical Path and Slack for each activity. Activity Predecessor(s) Duration (days) A 5 B A 20 A 15 D A 5 E 60 B, C D F 15 G E 20 H 15 E G H I 2 a. What is the Critical path for this project network? b. What is the expected duration of the projtct? c. How many days of slack does Activity F have? Problem 2: TE: calculate TE Calculation: (Opt+(4)ML+Pes)/6 Likely Pessimistic Est. Duration you will use Activity A Optimistic 6 9 18 B 3 8 13
