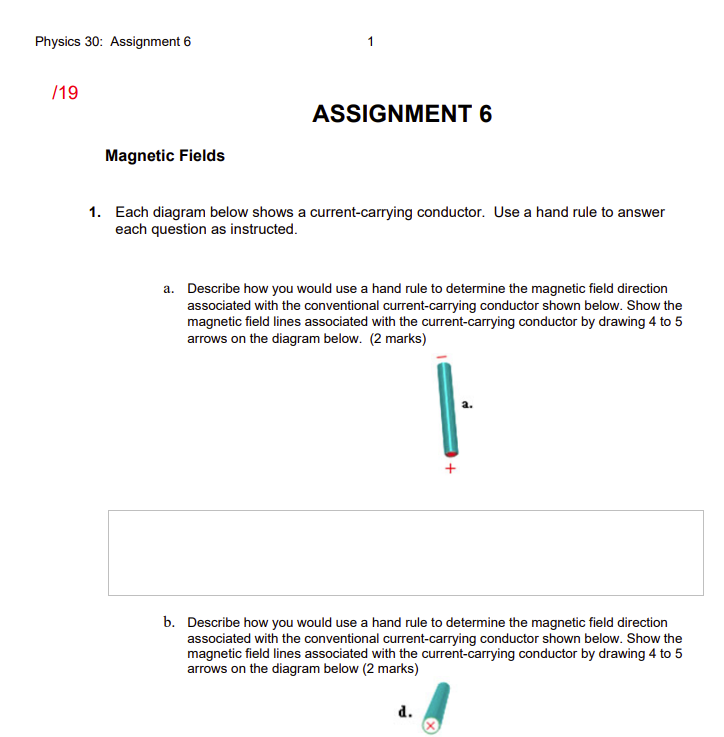

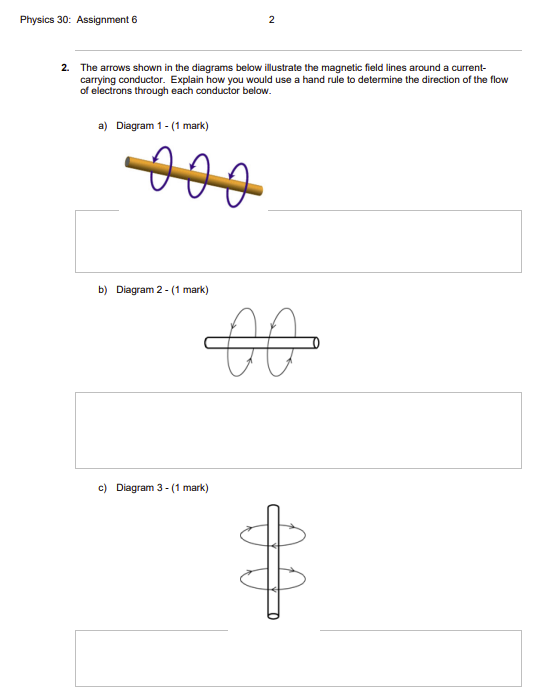

Physics 30: Assignment & 1 19 ASSIGNMENT 6 Magnetic Fields 1. Each diagram below shows a current-carrying conductor. Use a hand rule to answer each question as instructed. a. Describe how you would use a hand rule to determine the magnetic field direction associated with the conventional current-carrying conductor shown below. Show the magnetic field lines associated with the current-carrying conductor by drawing 4 to 5 arrows on the diagram below. (2 marks) b. Describe how you would use a hand rule to determine the magnetic field direction associated with the conventional current-carrying conductor shown below. Show the magnetic field lines associated with the current-carrying conductor by drawing 4 to 5 arrows on the diagram below (2 marks) o A Y Physics 30: Assignment 6 2 2. The arrows shown in the diagrams below illustrate the magnetic field lines around a current- carrying conductor. Explain how you would use a hand rule to determine the direction of the flow of electrons through each conductor below. a) Diagram 1 - (1 mark) b) Diagram 2 - (1 mark) c) Diagram 3 - (1 mark)Physics 30: Assignment 6 3 3. Sketch a diagram of a bar magnet. Label the north and south poles and draw the field lines surrounding the magnet. (2 marks) 4. Draw a diagram of bar magnet with a compass beside it. Indicate the north and south poles on the bar magnet and the compass. Show the field lines surrounding the bar magnet. (2 marks)
