Now, write a C program for which the miss rate is considerably higher for a $64-$byte block than for a $32-$byte block. The easiest way to do this is to find two array locations that conflict with a $64-$byte block, but not with a $32-$byte block. If you do this, you will see the cache with the $32-$byte blocks have a nearly $0\%$ miss rate while the cache with the $64-$byte blocks has nearly a $100\%$ miss rate.

You may not change the associativity or overall cache size. List your source code, all cache parameters used, and the resulting hit rates.

Hint: You need not loop through the entire array. Instead, find two addresses that collide in the cache. Remove the inner loop and make NUM$\_$LOOPS $10,000,000.$

Hint for writing programs with a specified cache behavior:

Notice in blockSize$1.$c that array is an array of characters; therefore, each item in the array is exactly $1$ byte. As a result, it is easy to identify data items that will or will not conflict in the cache. For example, in an $8$KB direct$-$mapped cache, array bytes $0$ and $8192$ will conflict. Your job is to find sets of array elements that conflict with a $64-$byte block, but not a $32-$byte block. This is basically a pencil$-$and$-$paper problem that we happen to be using a cache simulator to verify $```$

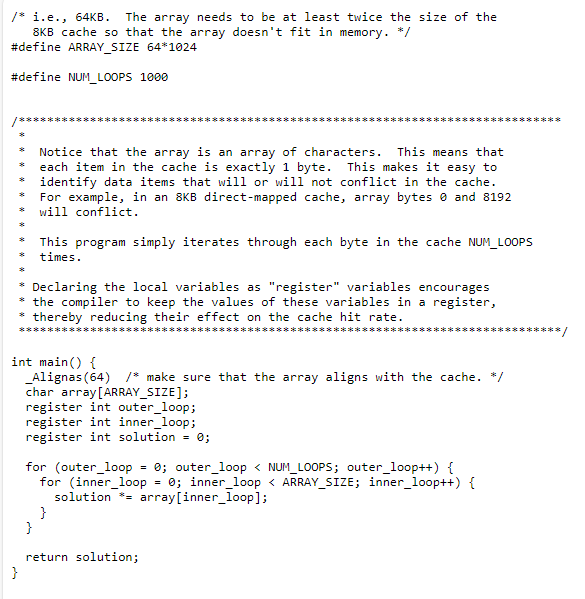

$/*$ i$.$e$.,64$KB$.$ The array needs to be at least twice the size of the

$8$KB cache so that the array doesn't fit in memory. $*/$

#define ARRAY$\_$SIZE $64*1024$

#define NUM$\_$LOOPS $1000$

$/*****************************************************************************************$

$*$

$*$ Notice that the array is an array of characters. This means that

$*$ each item in the cache is exactly $1$ byte. This makes it easy to

$*$ identify data items that will or will not conflict in the cache.

$*$ For example, in an $8$KB direct$-$mapped cache, array bytes $0$ and $8192$

$*$ will conflict.

$*$

$*$ This program simply iterates through each byte in the cache NUM$\_$LOOPS

$*$ times.

$*$

$*$ Declaring the local variables as "register" variables encourages

$*$ the compiler to keep the values of these variables in a register,

$*$ thereby reducing their effect on the cache hit rate.

$```$

$```$

int main$()\{$

$\_$Alignas$(64)/*$ make sure that the array aligns with the cache. $*/$

char array$[$ARRAY$\_$SIZE$]$;

register int outer$\_$loop;

register int inner$\_$loop;

register int solution $=0$;

for $($outer$\_$loop $=0$; outer$\_$loop $$ NUM$\_$LOOPS; outer$\_$loop$++)\{$

for $($inner$\_$loop $=0$; inner$\_$loop $$ ARRAY$\_$SIZE; inner$\_$loop$++)\{$

solution $*=$ array$[$inner$\_$loop$]$;

$\}$

$\}$

return solution;

$\}$

$```$
