plz solve this.....

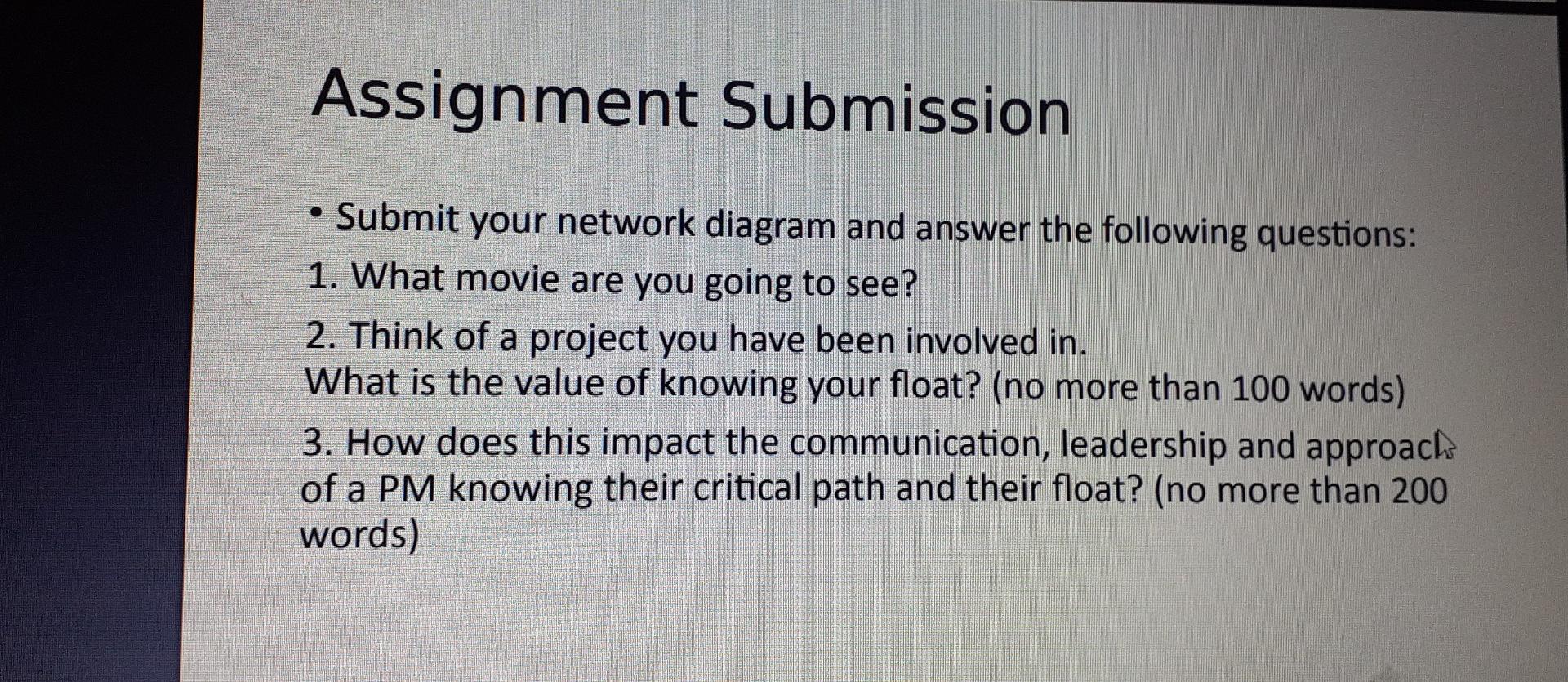

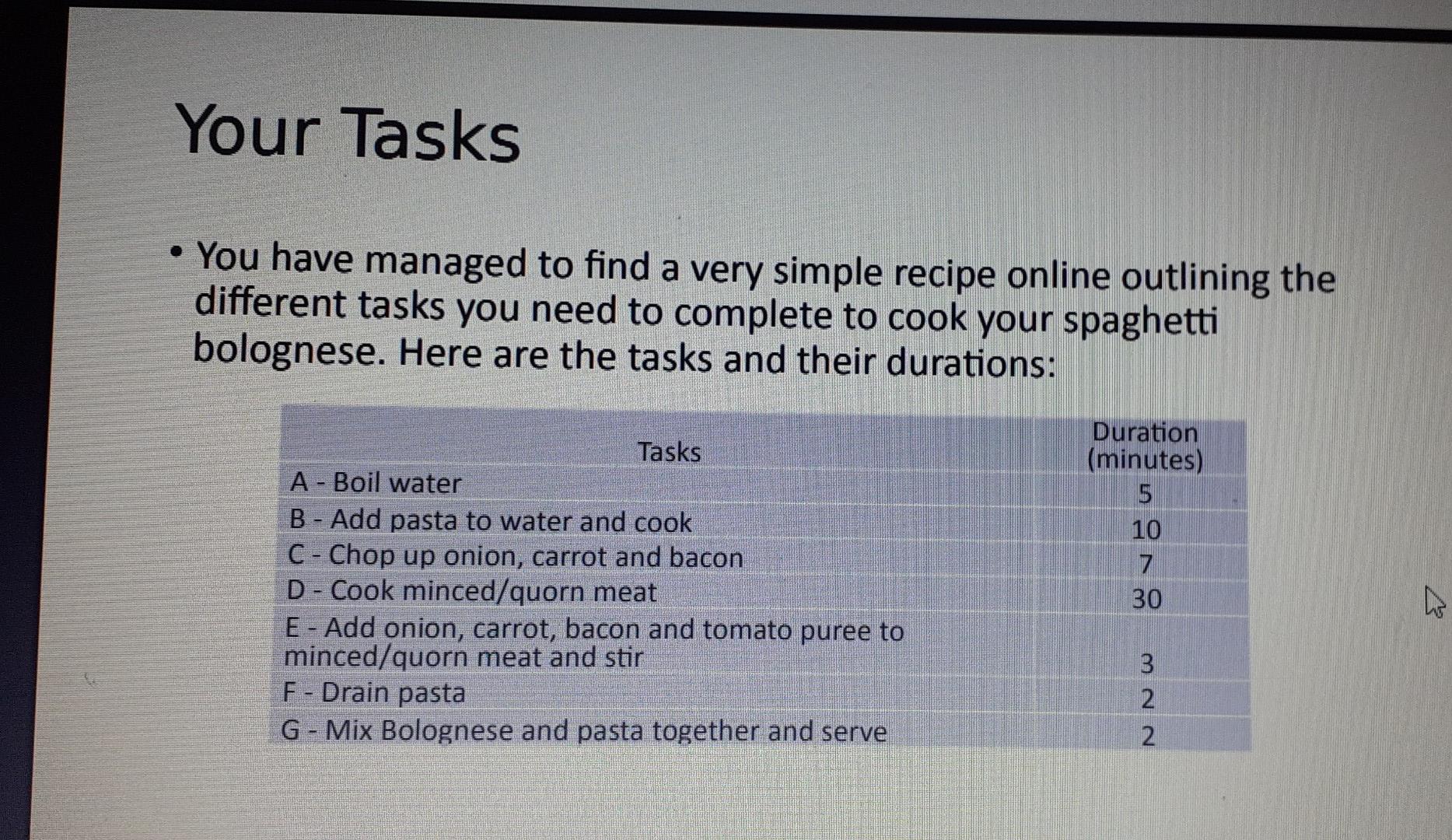

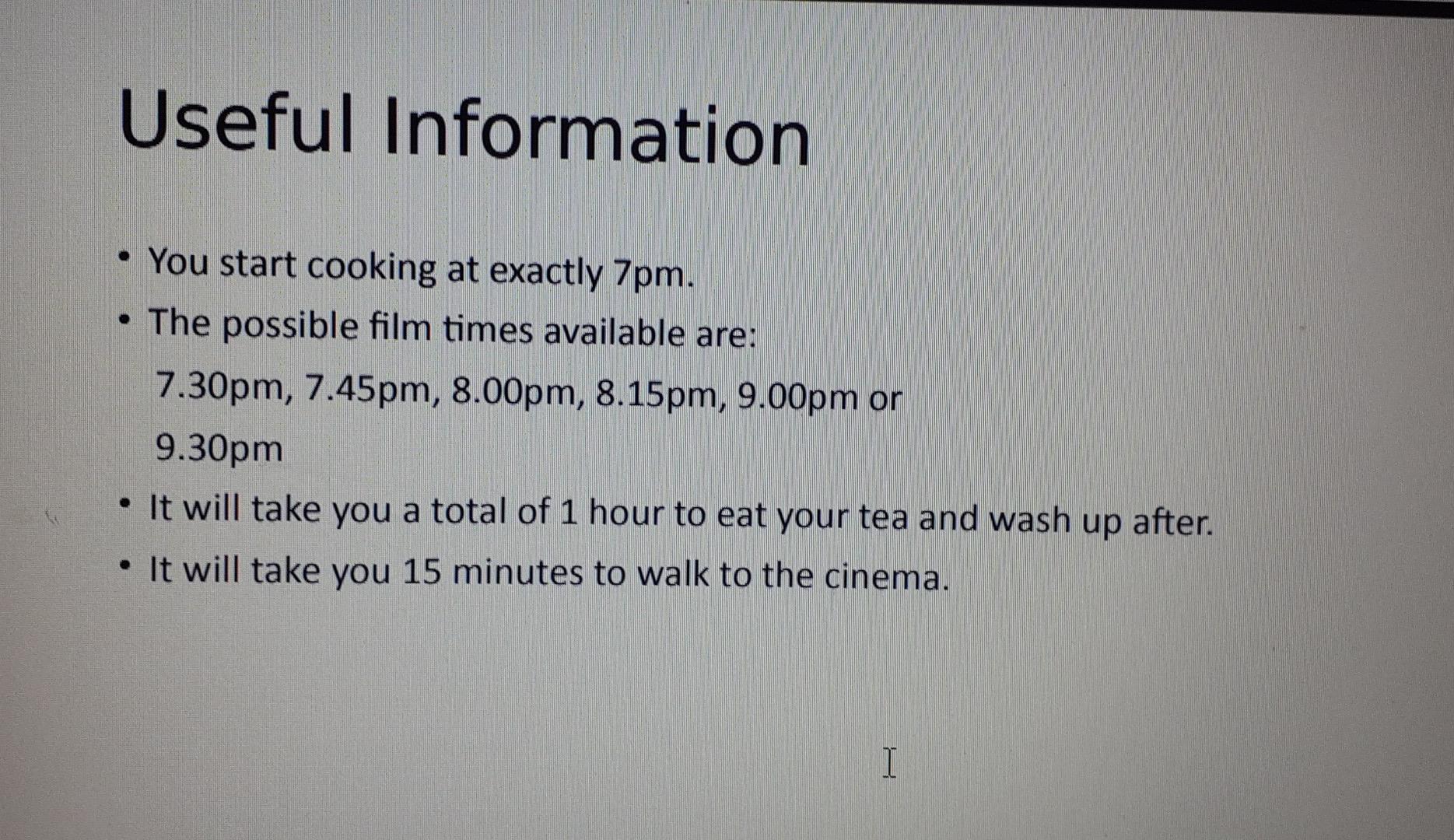

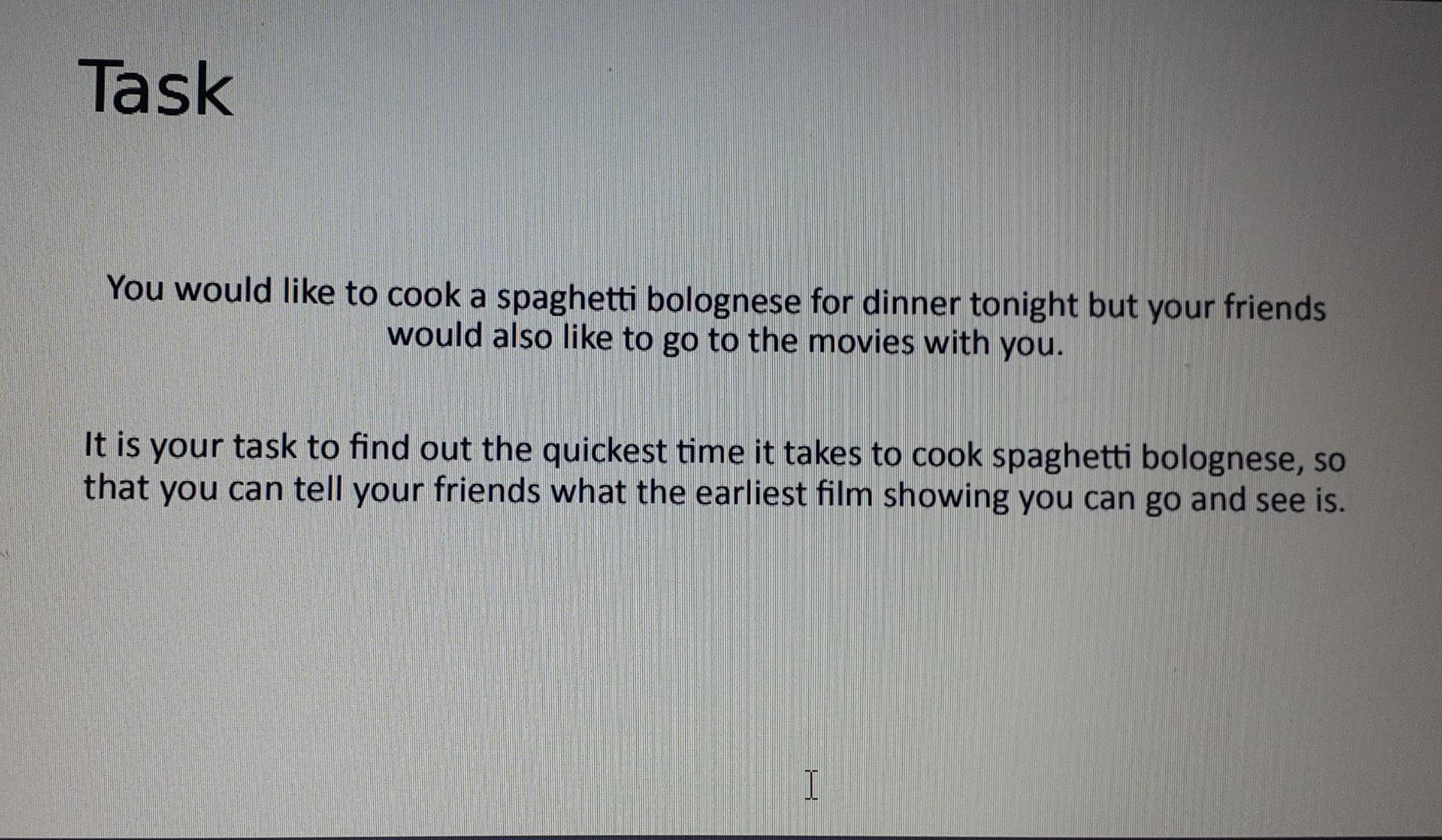

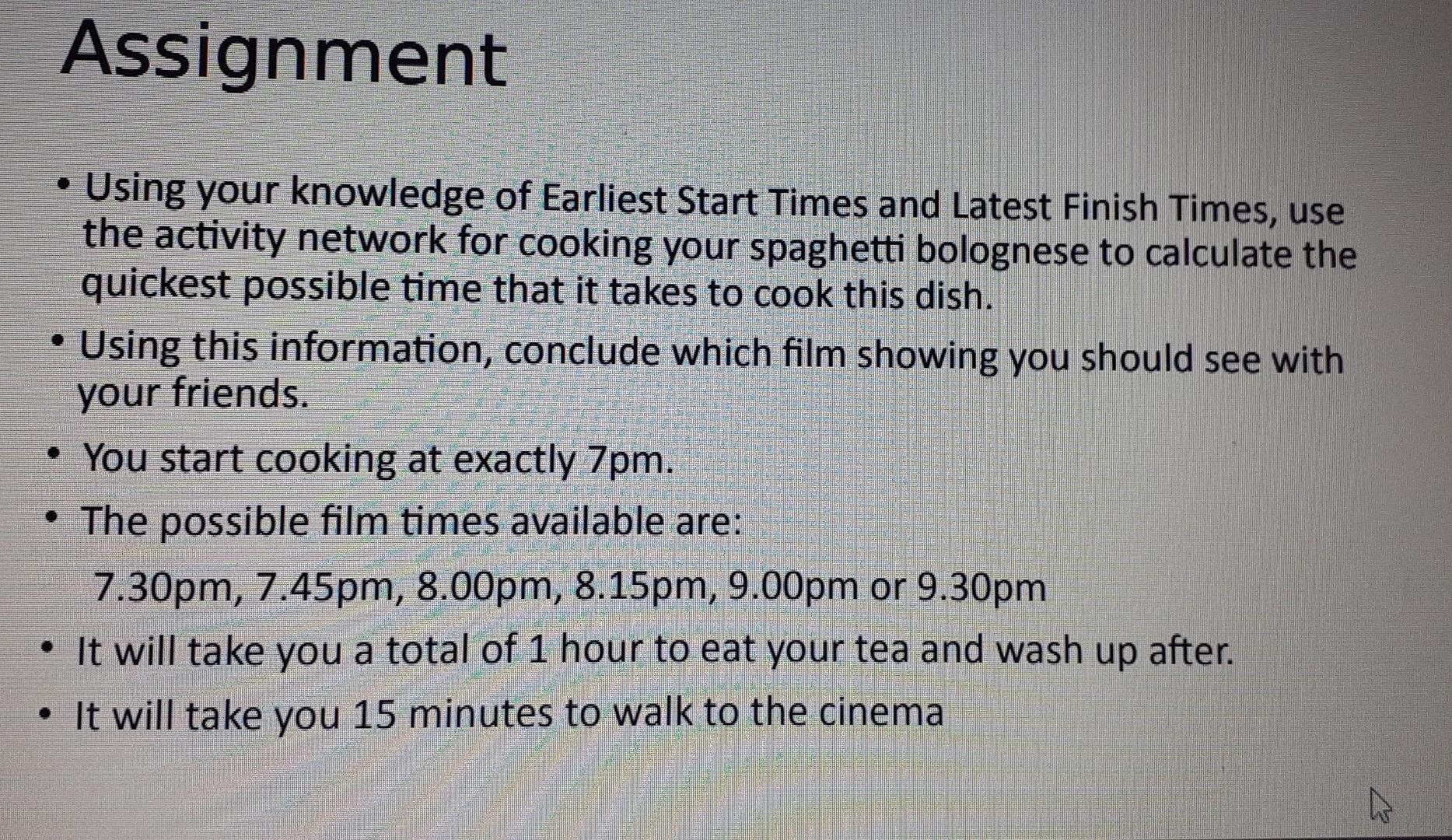

Assignment 5 - Create a Network Diagram Hide Assignment Information Instructions A network diagram is built from the WBS in any project. It helps us understand how to allocate resources effectively and know where resources are available or not so we can make plans for utilizing resources efficiently. You will watch the video posted and create your own network diagram from the scenario in the powerpoint called Cooking Bolognese. Please do not worry about making fancy flow charts that may cause you problems with formatting if that does not work for you. You can make this by hand through drawing or using post-its and taking a photo of your work. Task You would like to cook a spaghetti bolognese for dinner tonight but your friends would also like to go to the movies with you. It is your task to find out the quickest time it takes to cook spaghetti bolognese, so that you can tell your friends what the earliest film showing you can go and see is. 1 Useful Information You start cooking at exactly 7pm. The possible film times available are: 7.30pm, 7.45pm, 8.00pm, 8.15pm, 9.00pm or 9.30pm It will take you a total of 1 hour to eat your tea and wash up after. . It will take you 15 minutes to walk to the cinema. I Your Tasks You have managed to find a very simple recipe online outlining the different tasks you need to complete to cook your spaghetti bolognese. Here are the tasks and their durations: Duration (minutes) Tasks A - Boil water B - Add pasta to water and cook C - Chop up onion, carrot and bacon D - Cook minced/quorn meat E - Add onion, carrot, bacon and tomato puree to minced/quorn meat and stir F - Drain pasta G - Mix Bolognese and pasta together and serve 10 7 30 m NN 3 2 2 Precedence Table Your precedence chart should like this: Activity Depends on A - Boil water A B - Add pasta to water and cook C - Chop up onion, carrot and bacon D - Cook minced/quorn meat CD E - Add onion, carrot, bacon and tomato puree to minced/quorn meat and stir B F - Drain pasta G - Mix Bolognese and pasta together and serve Assignment Using your knowledge of Earliest Start Times and Latest Finish Times, use the activity network for cooking your spaghetti bolognese to calculate the quickest possible time that it takes to cook this dish. Using this information, conclude which film showing you should see with your friends. You start cooking at exactly 7pm. The possible film times available are: 7.30pm, 7.45pm, 8.00pm, 8.15pm, 9.00pm or 9.30pm It will take you a total of 1 hour to eat your tea and wash up after. It will take you 15 minutes to walk to the cinema Assignment Submission . Submit your network diagram and answer the following questions: 1. What movie are you going to see? 2. Think of a project you have been involved in. What is the value of knowing your float? (no more than 100 words) 3. How does this impact the communication, leadership and approach of a PM knowing their critical path and their float? (no more than 200 words)
