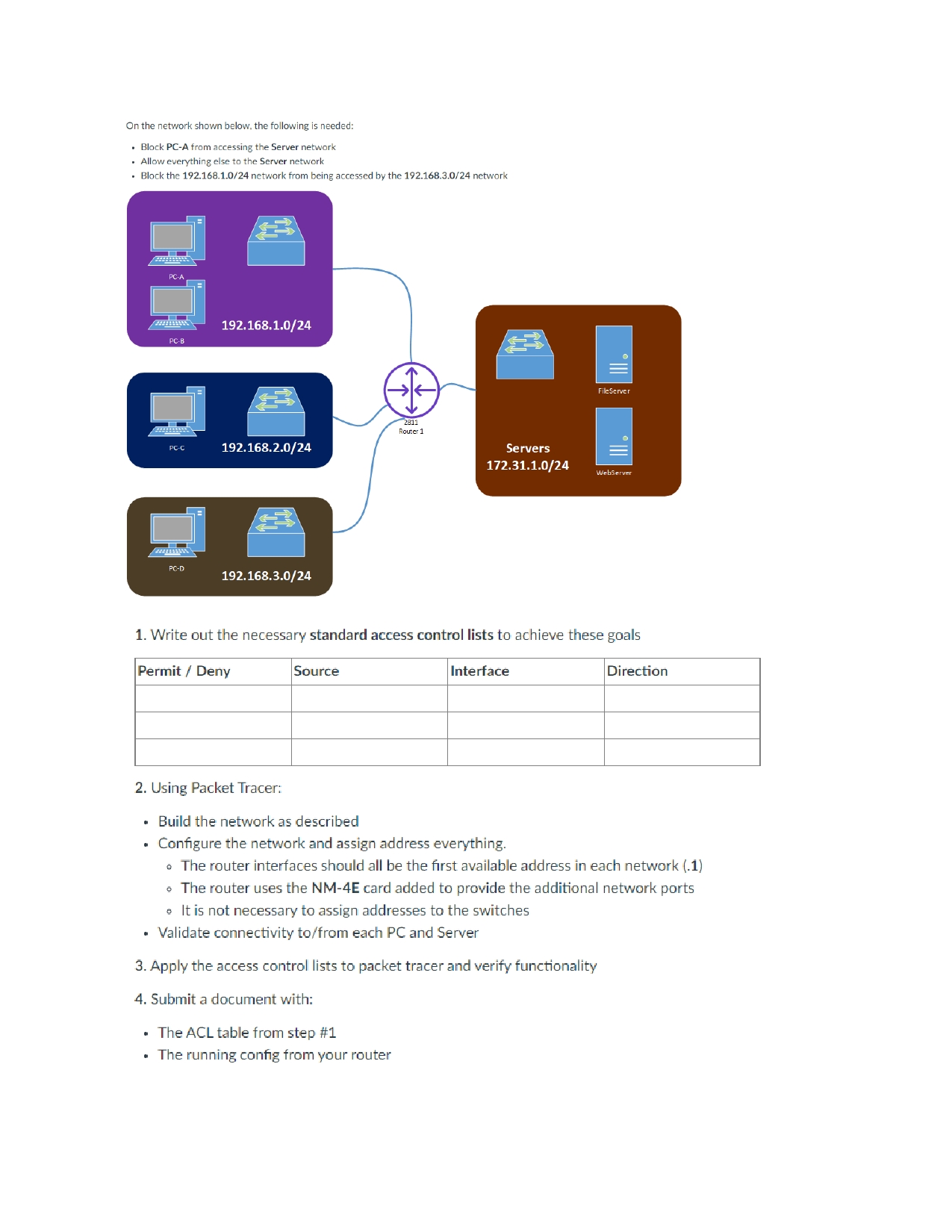

On the network shown below, the following is needed:

Block PC$-$A from accessing the Server network

Allow everything else to the Server network

Block the $192\mathrm{.}168\mathrm{.}1\mathrm{.}0/24$ network from being accessed by the $192\mathrm{.}168\mathrm{.}3\mathrm{.}0/24$ network

Write out the necessary standard access control lists to achieve these goals

Using Packet Tracer:

Build the network as described

Configure the network and assign address everything.

The router interfaces should all be the first available address in each network $(\mathrm{.}1)$

The router uses the NM$-4$E card added to provide the additional network ports

It is not necessary to assign addresses to the switches

Validate connectivity to$/$from each PC and Server

Apply the access control lists to packet tracer and verify functionality

Submit a document with:

The ACL table from step #$1$

The running config from your router
