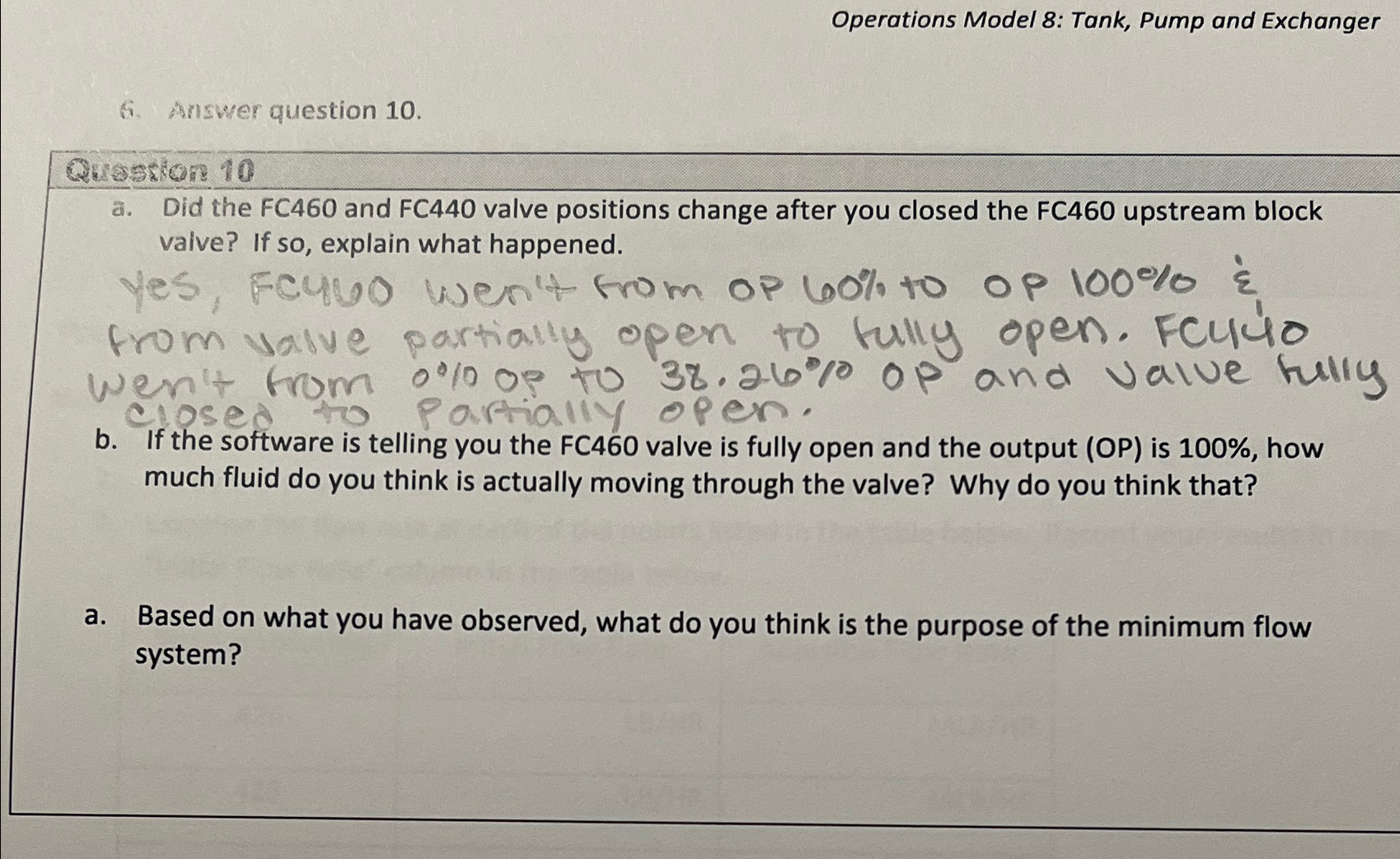

Operations Model $8$: Tank, Pump and Exchanger

$6.$ Answer question $10.$

Question $10$

a$.$ Did the FC$460$ and FC$440$ valve positions change after you closed the FC$460$ upstream block valve? If so$,$ explain what happened.

Yes, fcyso wen't from op $60\%$ to op $100\%$ &

from valve partially open to fully open. Fcuclo

wen't from $\%$ op to $38\mathrm{.}26\%$ op and valve fully

b$.$ If the software is telling you the FC$460$ valve is fully open and the output $($OP$)$ is $100\%,$ how much fluid do you think is actually moving through the valve? Why do you think that?

a$.$ Based on what you have observed, what do you think is the purpose of the minimum flow system?
