Question: OUESTION 1 : SLOPE - DEFLECTION METHOD: BEAMS ( SIS ) Determine the member end moments of the beam of the rectangular cross section shown.

OUESTION 1: SLOPE-DEFLECTION METHOD: BEAMS (SIS)

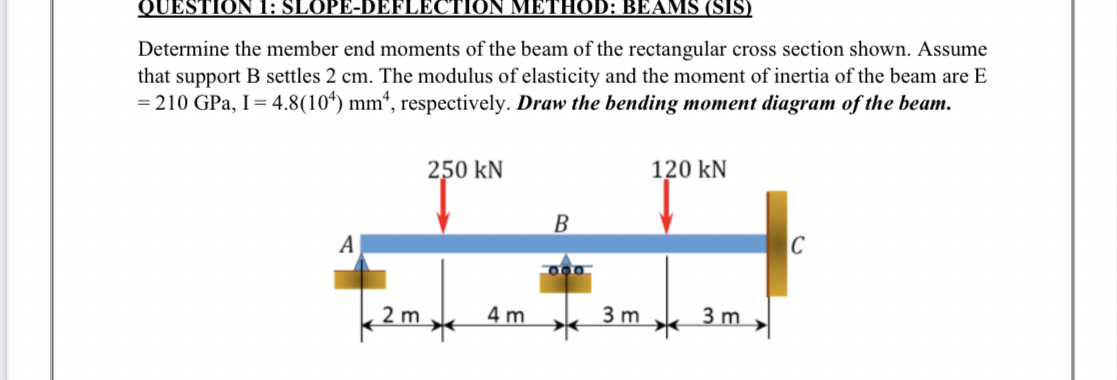

Determine the member end moments of the beam of the rectangular cross section shown. Assume that support B settles 2 cm . The modulus of elasticity and the moment of inertia of the beam are E =210GPa,I=4.8(104)mm4, respectively. Draw the bending moment diagram of the beam.
