Question: P 2 . For the following beam with loading pattern as given, find the vertical deflection at A and the rotation at B . Calculate

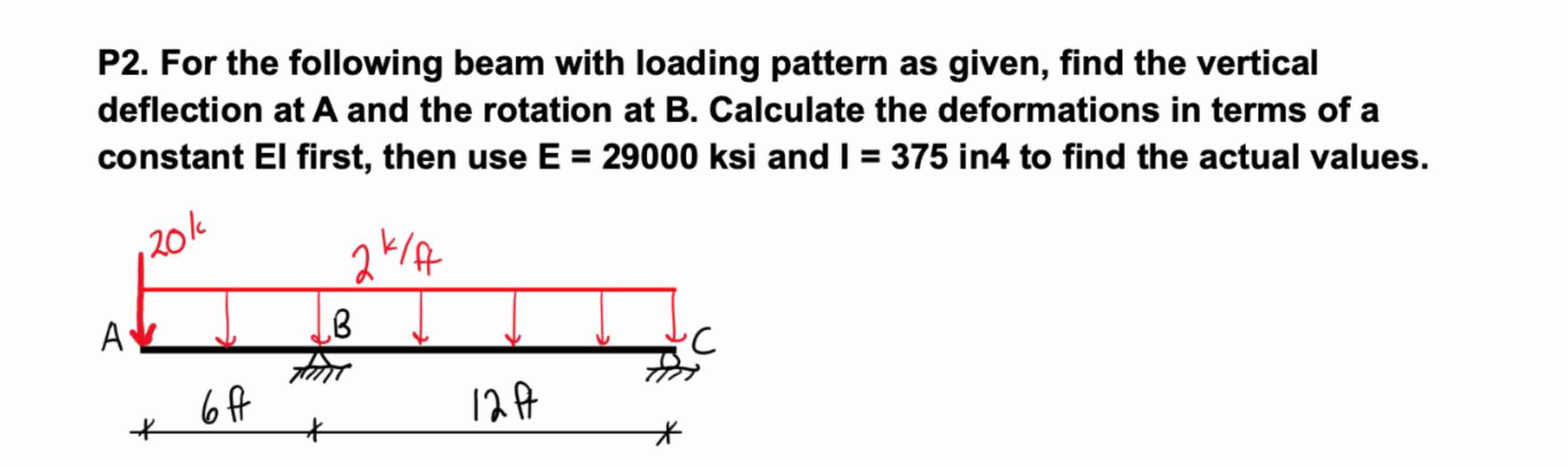

P2. For the following beam with loading pattern as given, find the vertical deflection at A and the rotation at B. Calculate the deformations in terms of a constant El first, then use \( E=29000\mathrm{ksi}\) and \(\mathrm{I}=\mathbf{375}\) in4 to find the actual values.
P 2 . For the following beam with loading pattern
